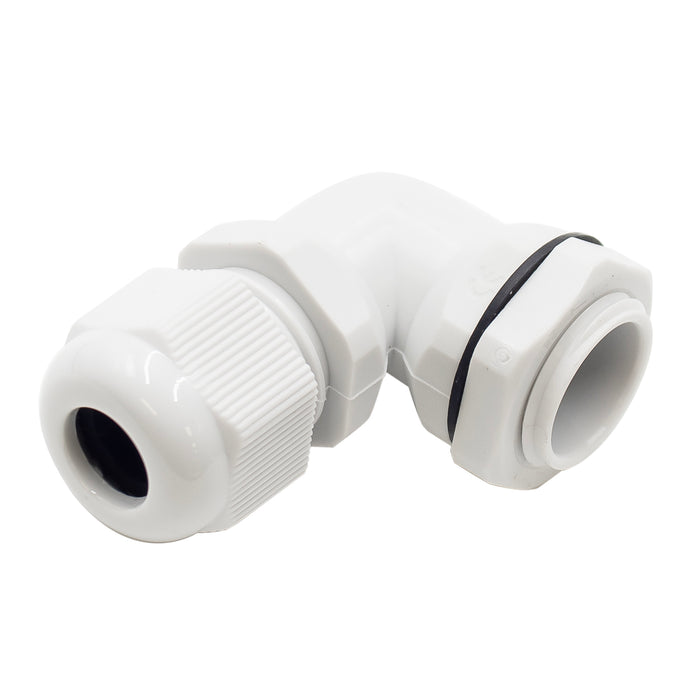

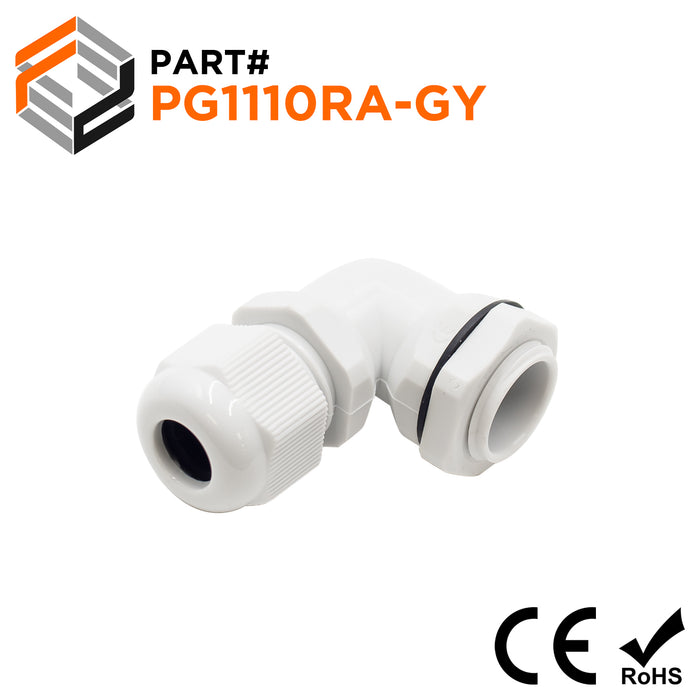

PG11 Right Angle Cable Gland - 5-10mm - Gray - PG1110RA-GY
Original price
$1.32
-
Original price
$1.32
Original price
$1.32
$1.32
-
$1.32
Current price
$1.32
SKU PG1110RA-GY
Availability:
in stock, ready to be shipped
Right Angle PG Thread Gray Cable Gland (Includes both locknut and washer)
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Thread Size: | PG11 |
| Cable Range: | 5-10mm |
| Color: | Gray |
| C1: | 18.4mm (0.72") |
| C2: | 16.8mm (0.66") |
| D2: | 14.2mm (0.56") |
| B1: | 10.5mm (0.41") |
| H: | 28.7mm (1.13") |
| L: | 47.1mm (1.85") |
| L1: | 8.9mm (0.35") |
| L2: | 11mm (0.43") |
| L3: | 16.6mm (0.65") |
| Material: | UL Approved 94UV-2 |
| Flammability: | PA (Nylon), UL 94 |
| Hermetic Seal: | NBR (Nitrile Rubber) |
| O-Ring: | EPDM |
| Working Temperature: | -40°C to 105°C |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
