PG13.5 Right Angle Cable Gland - 6-12mm - Black - PG13512RA
Original price
$1.96
-
Original price
$1.96
Original price
$1.96
$1.96
-
$1.96
Current price
$1.96
SKU PG13512RA
Availability:
in stock, ready to be shipped

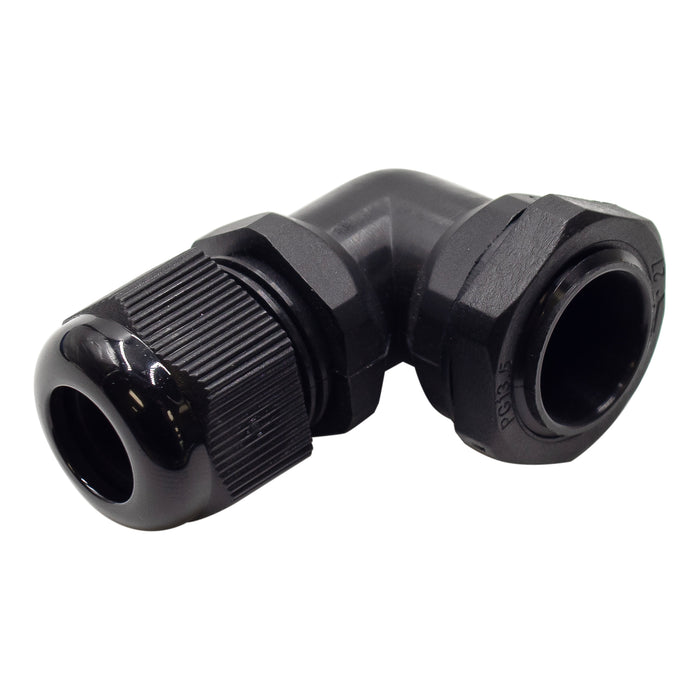

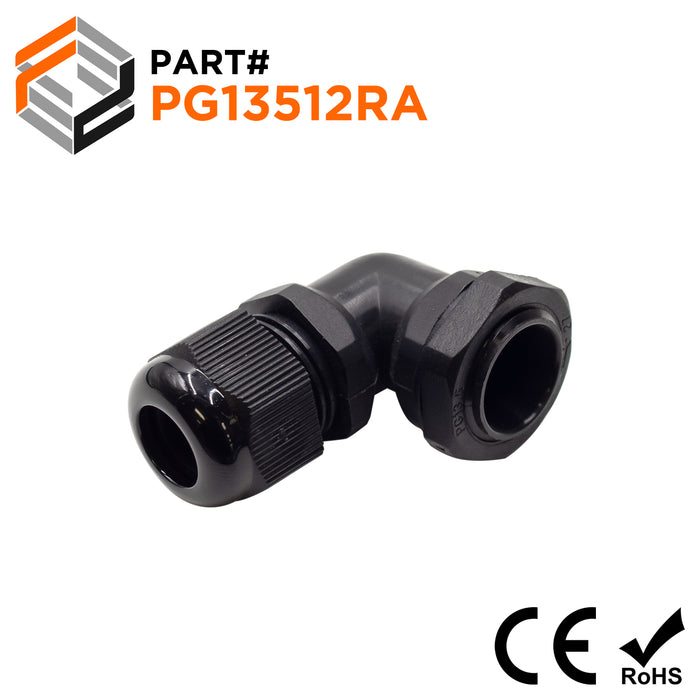

Right Angle PG Thread Black Cable Gland (Includes both locknut and washer)
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Thread Size: | PG13.5 |
| Cable Range: | 6-12mm |
| Color: | Black |
| C1: | 20.3mm (0.80") |
| C2: | 18.7mm (0.74") |
| D2: | 15.9mm (0.63") |
| B1: | 12.6mm (0.50") |
| H: | 30.6mm (1.20") |
| L: | 50.9mm (2.00") |
| L1: | 8.9mm (0.35") |
| L2: | 12mm (0.47") |
| L3: | 17.7mm (0.70") |
| Material: | UL Approved 94UV-2 |
| Flammability: | PA (Nylon), UL 94 |
| Hermetic Seal: | NBR (Nitrile Rubber) |
| O-Ring: | EPDM |
| Working Temperature: | -40°C to 105°C |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
