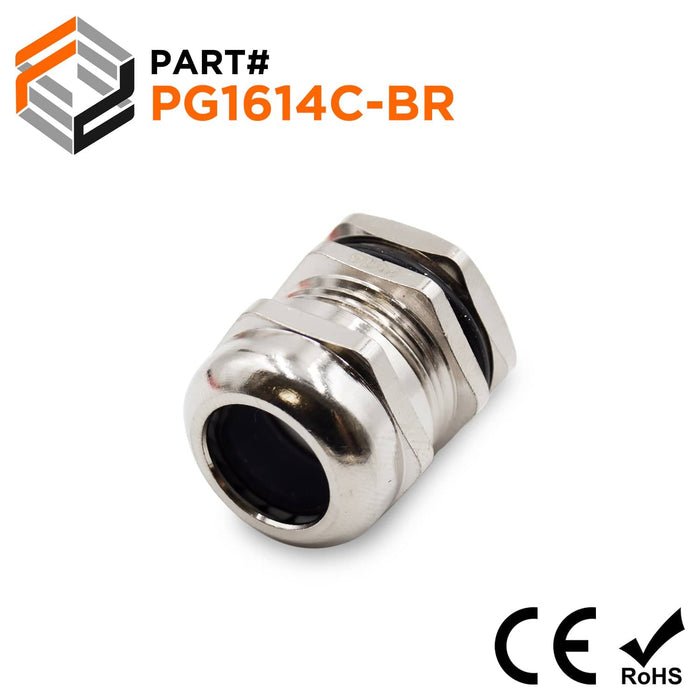

PG1614C-BR - PG16 Cable Gland & Lock Nut, Nickel Plated Brass, Range: 3/8" to 9/16", 1 Piece
Original price
$2.25
-
Original price
$2.25
Original price
$2.25
$2.25
-
$2.25
Current price
$2.25
SKU PG1614C-BR
Quantity: 1 Piece
Availability:
in stock, ready to be shipped
PG16 Thread Nickel Plated Brass Cable Gland with Lock Nut and O-Ring.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Thread Size: | PG16 |
| Cable Range: | 3/8" to 9/16" (10-14mm) |
| C1: | 22.3mm (0.88") |
| C2: | 14.3mm (0.56") |
| D2: | 14.3mm (0.56") |
| B1: | 14.3mm (0.56") |
| L1: | 6.2mm (0.24") |
| L2: | 21.5mm (0.85") |
| L3: | 13.8mm (0.54") |
| Material: | Nickel-Plated Brass |
| Flammability: | PA (Nylon), UL 94 |
| Ingress Protection: | IP68 |
| Hermetic Seal: | NBR (Nitrile Rubber) |
| O-Ring: | EPDM |
| Working Temperature: | -40°C to 105°C |
| UL Recognized: | No |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
