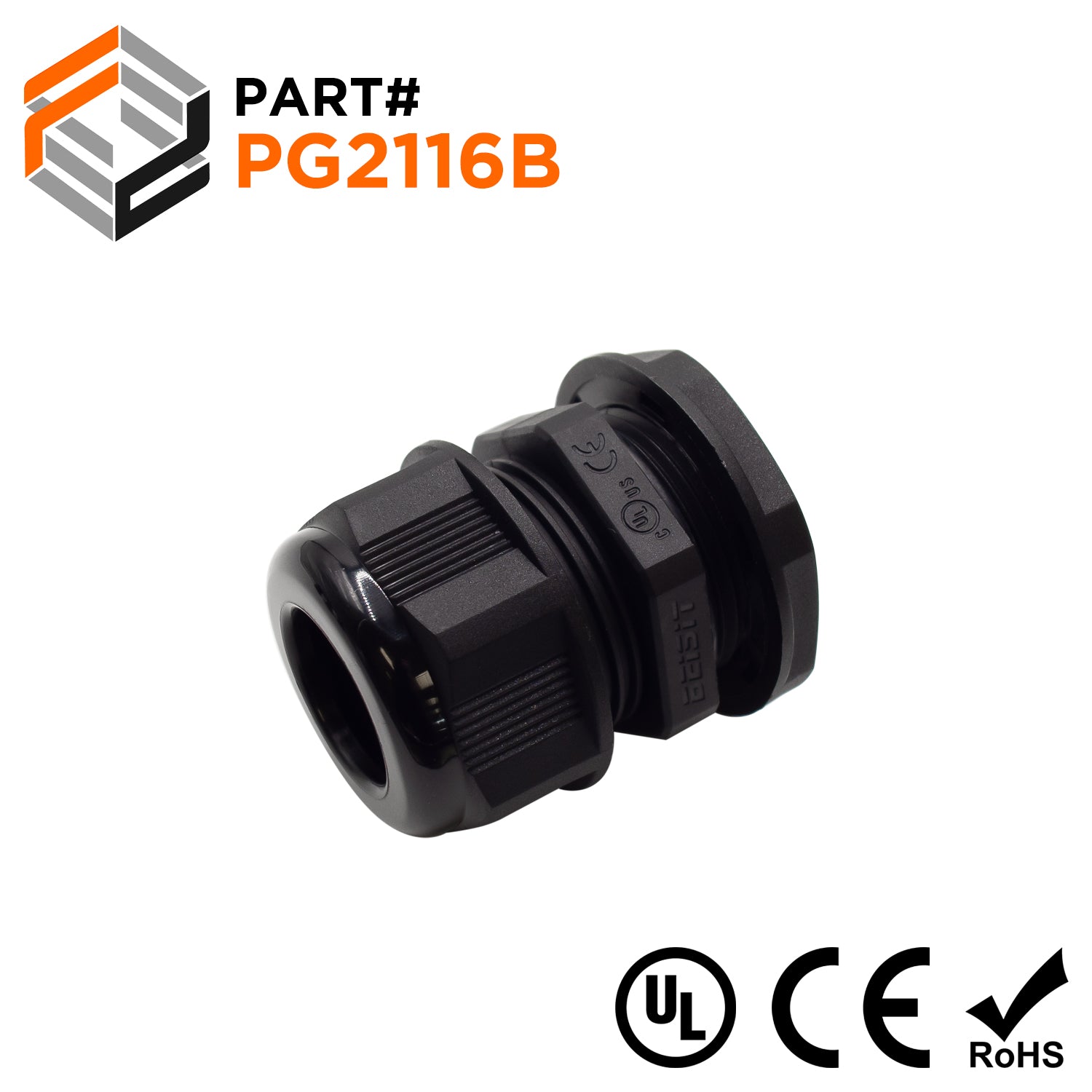

PG21 Nylon Cable Glands - 9-16mm - Black - PG2116BK
Original price
$1.56
-
Original price
$1.56
Original price
$1.56
$1.56
-
$1.56
Current price
$1.56
SKU PG2116BK
Availability:
in stock, ready to be shipped
PG Thread Black Cable Gland (Does not include o-ring or locknut)
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Thread Size: | PG21 |
| Cable Range: | 9-16mm |
| Color: | Black |
| C1: | 28.3mm (1.11") |
| C2: | 22.5mm (0.89") |
| D2: | 16.5mm (0.65") |
| B1: | 16.5mm (0.65") |
| L1: | 11mm (0.43") |
| L2: | 25.5mm (1.00") |
| L3: | 19.2mm (0.76") |
| Material: | UL Approved 94UV-2 |
| Ingress Protection: | IP68 |
| Flammability: | PA (Nylon), UL 94 |
| Hermetic Seal: | NBR (Nitrile Rubber) |
| O-Ring: | EPDM |
| Working Temperature: | -40°C to 105°C |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
