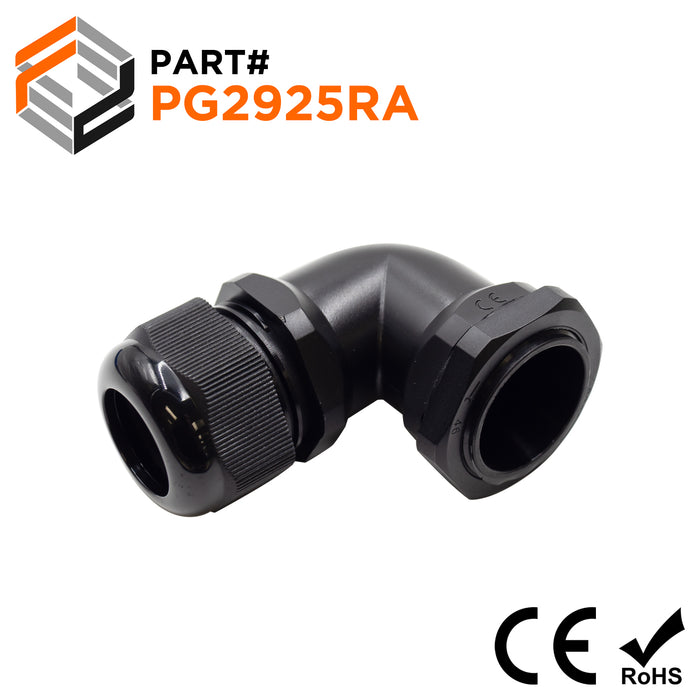

PG29 Right Angle Cable Gland - 18-25mm - Black - PG2925RA
Original price
$4.20
-
Original price
$4.20
Original price
$4.20
$4.20
-
$4.20
Current price
$4.20
SKU PG2925RA
Availability:
in stock, ready to be shipped

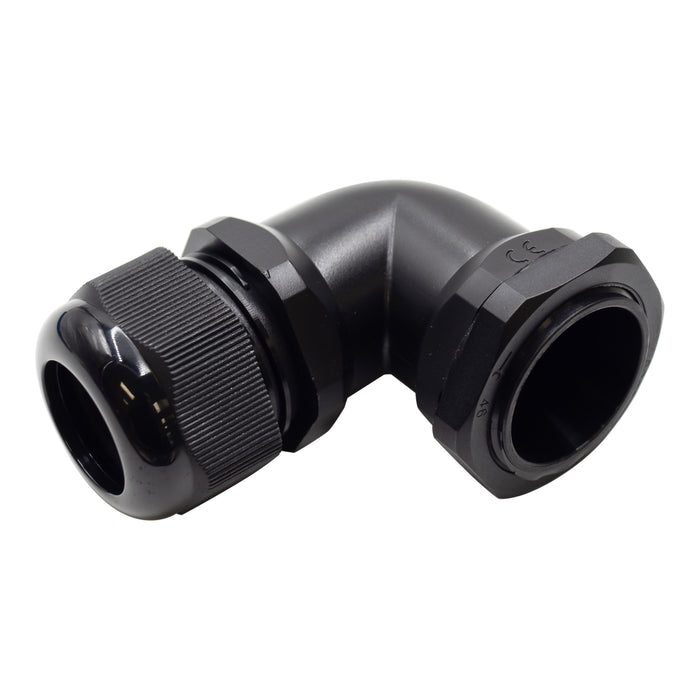

Right Angle PG Thread Black Cable Gland (Includes both locknut and washer)
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Thread Size: | PG29 |
| Cable Range: | 18-25mm |
| Color: | Black |
| C1: | 36.45mm (1.43") |
| C2: | 34.85mm (1.37") |
| D2: | 30.55mm (1.20") |
| B1: | 25.45mm (1.00") |
| H: | 59.20mm (2.33") |
| L: | 86.63mm (3.41") |
| L1: | 10.9mm (0.429") |
| L2: | 14.1mm (0.554") |
| L3: | 25.12mm (0.988") |
| Material: | UL Approved 94UV-2 |
| Flammability: | PA (Nylon), UL 94 |
| Hermetic Seal: | NBR (Nitrile Rubber) |
| O-Ring: | EPDM |
| Working Temperature: | -40°C to 105°C |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
