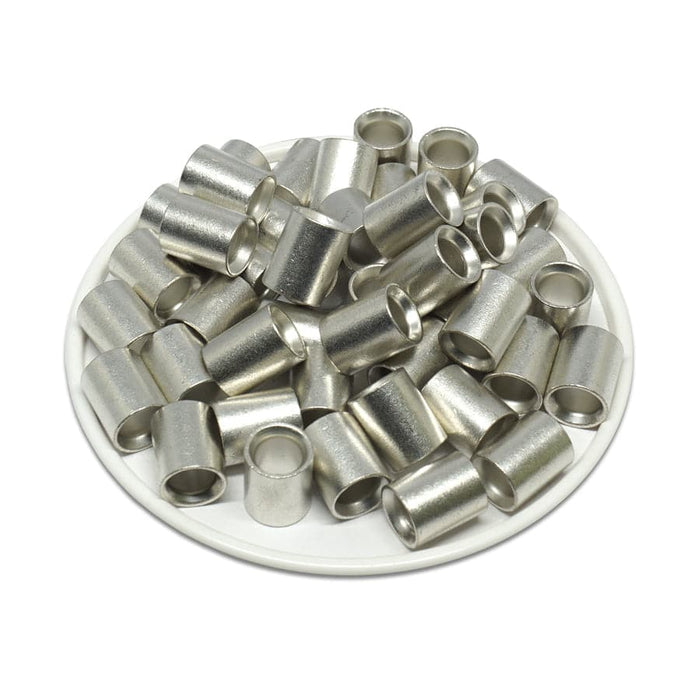

PNT14 - Non Insulated Parallel Connector - 6AWG
Original price
$17.54
-
Original price
$17.54
Original price
$17.54
$17.54
-
$17.54
Current price
$17.54
SKU PNT14
Availability:
in stock, ready to be shipped
Standard non insulated parallel splice connectors are the most economical among all the butt connectors. Made of seamless copper tubing, these parallel splice connectors offer a higher tensile strength than normal butted seam connectors. Product's tin plating offers excellent corrosion protection.
Dimensions & Features:
Product Drawing:
Elecdirect: P7F
Dimensions & Features:
| Wire Range: | 8 AWG |
| L: | 11mm (0.43") |
| D: | 8.9mm (0.35") |
| D1: | 5.9mm (0.23") |
| Wall Thickness: | 1.0mm (0.04") |
| Material: | Tin-Plated Copper - Seamless |
| Configuration: | Straight |
| Max Electrical Current: | 95 AMP |
| UL Recognized: | Yes |
| CE Cerified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:Elecdirect: P7F
