PNT16-8 - Non Insulated Parallel Connector - 6AWG
Original price
$48.07
-
Original price
$48.07
Original price
$48.07
$48.07
-
$48.07
Current price
$48.07
SKU PNT16-8
Availability:
in stock, ready to be shipped

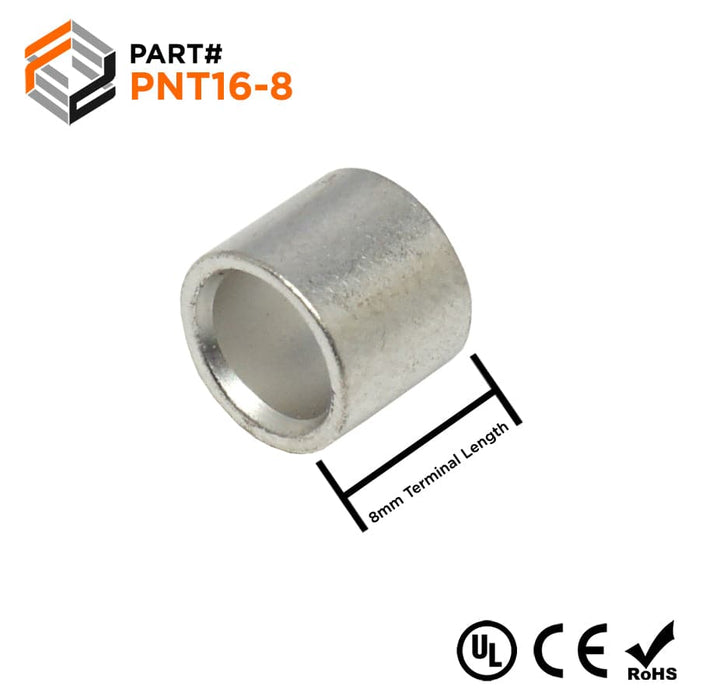

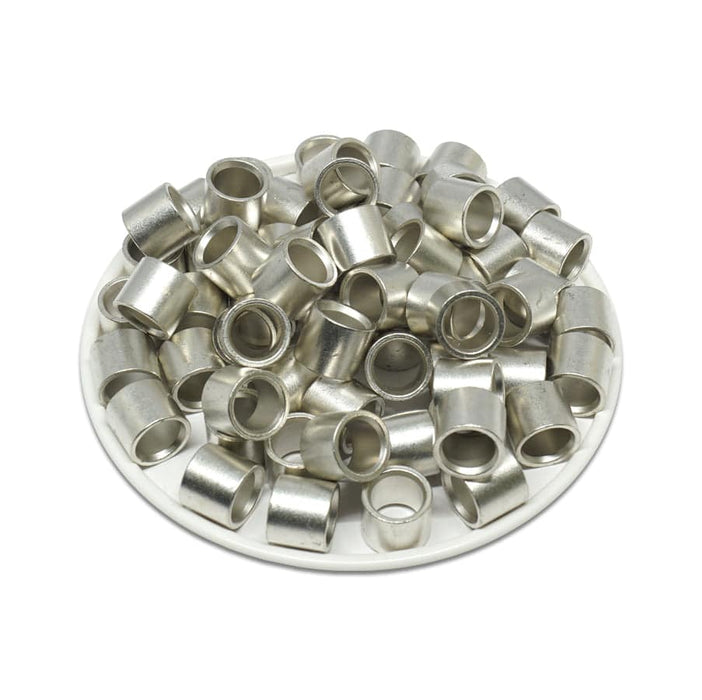

Standard non insulated parallel splice connectors are the most economical among all the butt connectors. Made of seamless copper tubing, these parallel splice connectors offer a higher tensile strength than normal butted seam connectors. Product's tin plating offers excellent corrosion protection.
Dimensions & Features:
Product Drawing:
Burndy: YSM6C
Tyco AMP: 34319
Dimensions & Features:
| Wire Range: | 6 AWG |
| L: | 8mm (0.31") |
| D: | 9.5mm (0.37") |
| D1: | 6.9mm (0.27") |
| Material: | Tin-Plated Copper - Seamless |
| Configuration: | Straight |
| Max Electrical Current: | 95 AMP |
| UL Recognized: | Yes |
| CE Cerified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:Burndy: YSM6C
Tyco AMP: 34319
