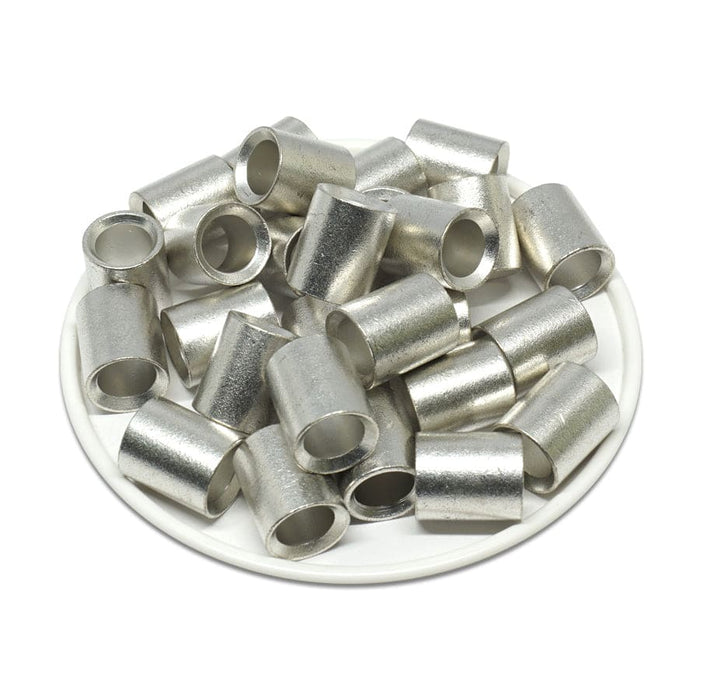

4 AWG Non Insulated Parallel Connectors, 1/2" Length, UL Approved, 50 Pieces - PNT22

Original price $38.08 - Original price $38.08
Original price
$38.08
$38.08 - $38.08
Current price $38.08
SKU PNT22
Availability:
in stock, ready to be shipped
Pack Quantity: 50 Pieces

NON INSULATED PARALLEL CONNECTORS

Standard non insulated parallel splice connectors are the most economical among all the butt connectors. Made of seamless copper tubing, these parallel splice connectors offer a higher tensile strength than normal butted seam connectors. Product's tin plating offers excellent corrosion protection.


Dimensions & Features:

Wire Range: 4 AWG

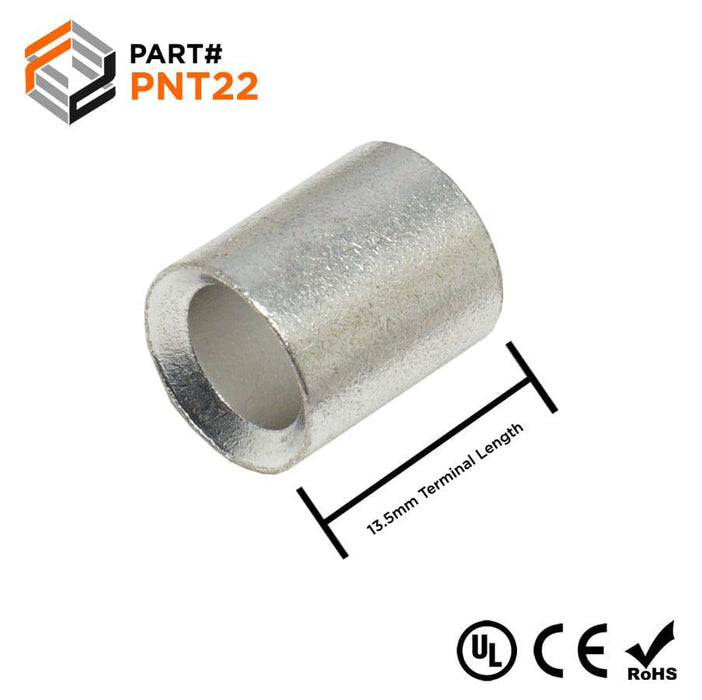

L: 13.5mm (0.53")
D: 11.3mm (0.45")
D1: 7.8mm (0.30")
Wall Thickness: 1.0mm (0.04")
Material: TKin-Plated Copper - Seamless
Configuration: Straight
Max Electrical Current: 125 AMP
UL Recognized: Yes
CE Cerified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:

Burndy: YSM4C
Elecdirect: P7G
Tyco AMP: 34320
