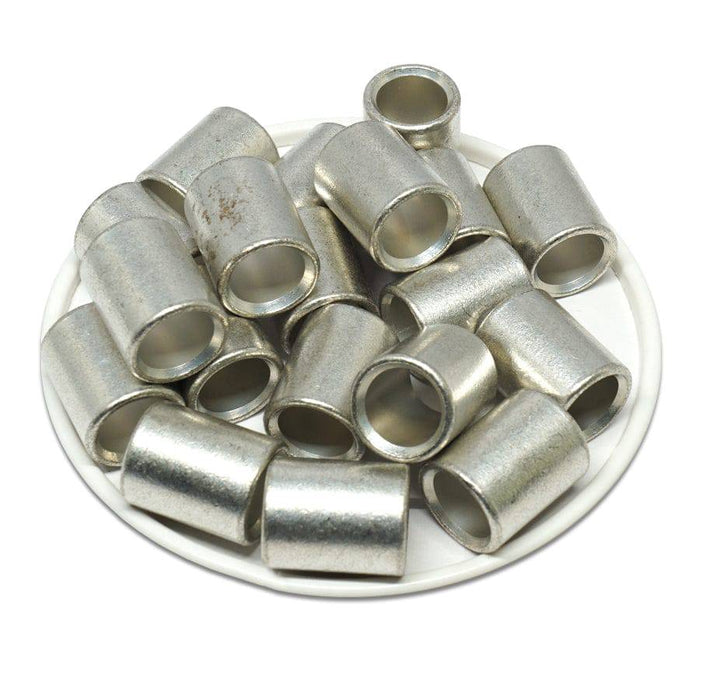

PNT38 - Non Insulated Parallel Connector - 2AWG
Original price
$28.87
-
Original price
$28.87
Original price
$28.87
$28.87
-
$28.87
Current price
$28.87
SKU PNT38
Availability:
in stock, ready to be shipped
Standard non insulated parallel splice connectors are the most economical among all the butt connectors. Made of seamless copper tubing, these parallel splice connectors offer a higher tensile strength than normal butted seam connectors. Product's tin plating offers excellent corrosion protection.
Dimensions & Features:
Product Drawing:
Burndy: YSM4C
Tyco AMP: 34320
Dimensions & Features:
| Wire Range: | 2 AWG |
| L: | 16.5mm (0.65") |
| D: | 13.2mm (0.52") |
| D1: | 9.5mm (0.37") |
| Wall Thickness: | 1.0mm (0.04") |
| Material: | Tin-Plated Copper - Seamless |
| Configuration: | Straight |
| Max Electrical Current: | 170 AMP |
| UL Recognized: | Yes |
| CE Cerified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:Burndy: YSM4C
Tyco AMP: 34320
Documents
Click to view product spec sheet:Videos
