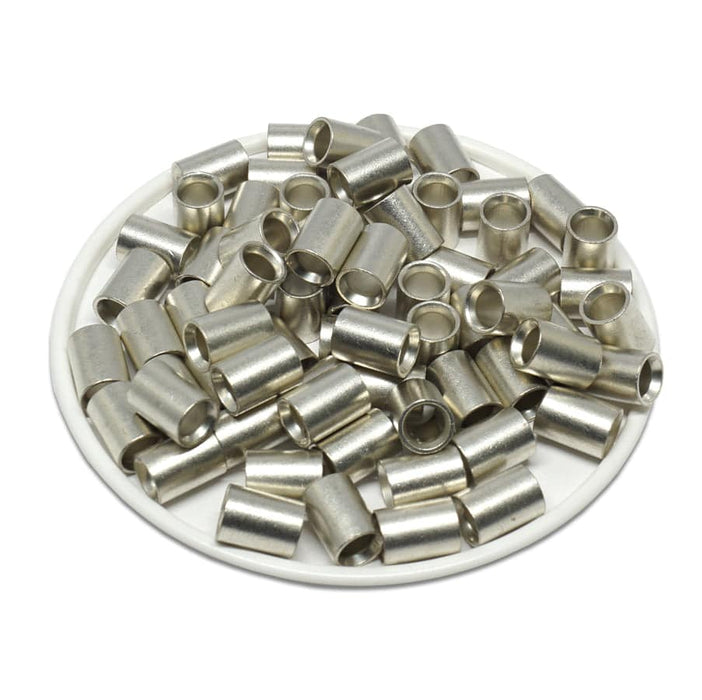

PNT8 - Non Insulated Parallel Connector - 8AWG

$22.98
SKU PNT8
Piece Quantity

PRODUCT DESCRIPTION

Standard non insulated parallel splice connectors are the most economical among all the butt connectors. Made of seamless copper tubing, these parallel splice connectors offer a higher tensile strength than normal butted seam connectors. Product's tin plating offers excellent corrosion protection.

DIMENSIONS AND FEATURES
L: 9.5mm (0.37") Wire Range: 8AWG
D: 7mm (0.28") Material: Tin-Plated Copper - Seamless
D1: 4.6mm (0.18") Configuration: Straight
Wall Thickness 1mm (0.04") UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

TECHNICAL DRAWING

Cross Reference Parts:

Burndy: YSM8C
Elecdirect: P7E
Tyco AMP: 34318

Click to view data sheet
