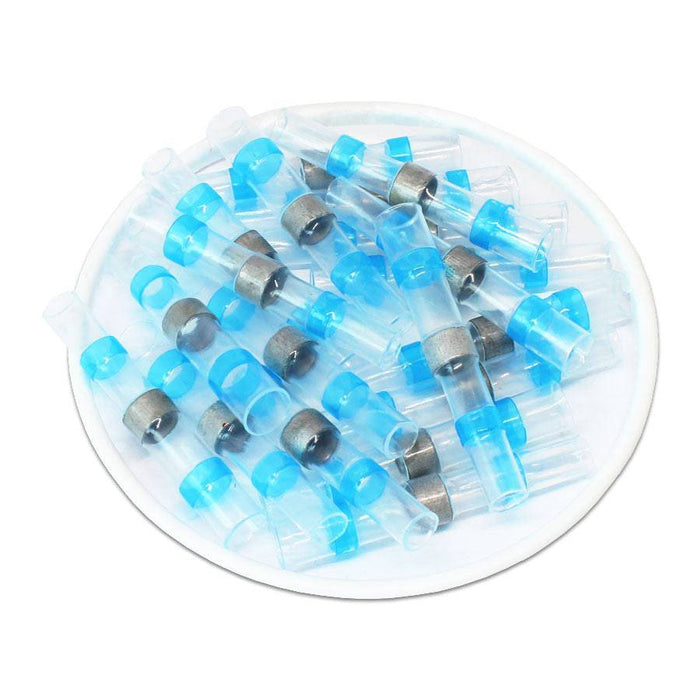

PSST103 - Heat shrink Solder Sleeve - 16-14 AWG - Blue

Original price $4.34 - Original price $8.86
Original price
$8.86
$4.34 - $8.86
Current price $8.86
SKU PSST103
Availability:
in stock, ready to be shipped
Availability:
in stock, ready to be shipped
Piece Quantity: 25 Pieces
true

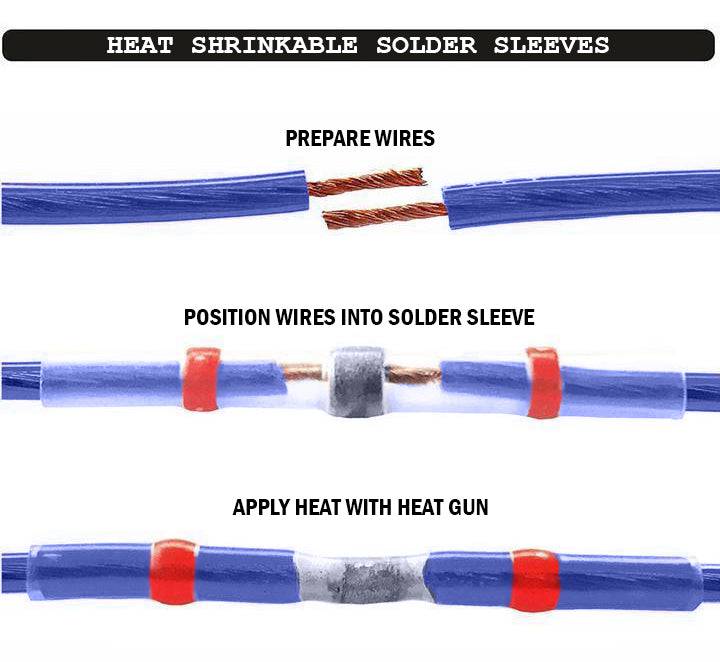

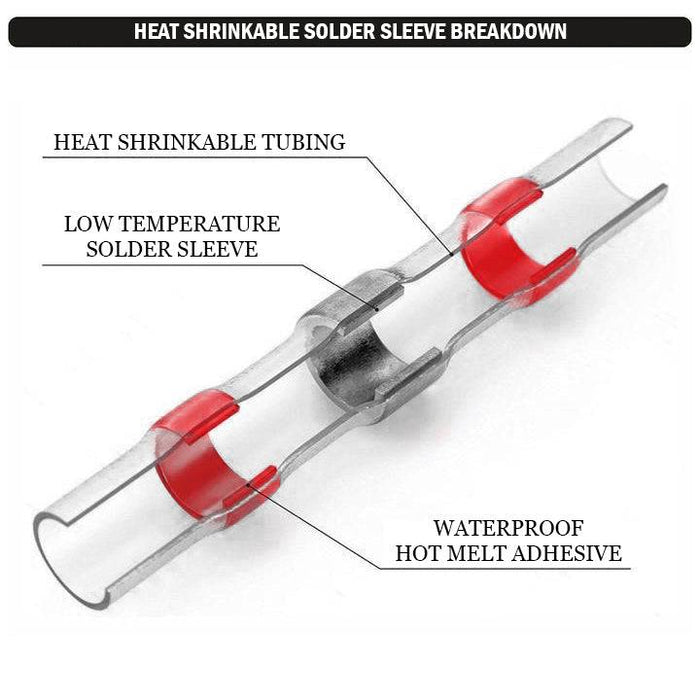

Heat shrink soldersleeves provide sealed protection against environmental extremities. They insulate, seal and protect joints from physical abuse, abrasion, water, salt, and other corrosive elements.

Dimensions & Features:

Wire Size: 16-14 AWG
Color: Blue
L: 40mm ± 1.5 (1.57")
D: 4.5mm (0.18")
Terminal Material: Tin-Plated Copper
Insulation Material: Polyolefin
Temperature Rating: -55°C to 125°C

Product Drawing:

Cross References

Cross Reference Parts:
None

Documents

Click to view product spec sheet:

Videos

Check out our YouTube channel!

COMPARE TO THESE PARTS:
