PTD1-10 - Vinyl Insulated Pin Terminals - Double Crimp - 22-16 AWG - Red - Ferrules Direct

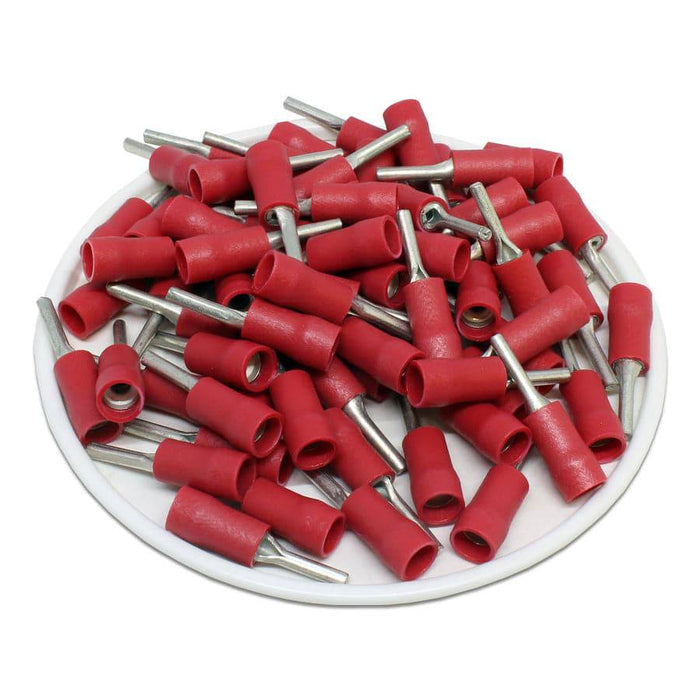

PTD1-10 - Vinyl Insulated Pin Terminals - Double Crimp - 22-16 AWG - Red

$11.78 - $11.78
$11.78
$11.78 - $11.78
$11.78
SKU PTD1-10

Quantity: 100 Pieces

Availability:
in stock, ready to be shipped
true
Pin terminals offer quick and easy connections in applications where set screws or clamps are used to make electrical contact with the wire.

Dimensions & Features:

Wire Size: 22-16 AWG
Color: Red
T: 0.75mm (0.03")
L: 19.8mm (0.78")
F: 9mm (0.35")
E: 10mm (0.39")
W: 1.9mm (0.08")
D: 4mm (0.16")
D1: 1.7mm (0.07")
Terminal Material: Tin-Plated Copper
Max Electrical Rating: 105°C - 600 Volts
Max Amp Rating: 18A
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Technical Drawing:



Cross References

Cross Reference Parts:
None
