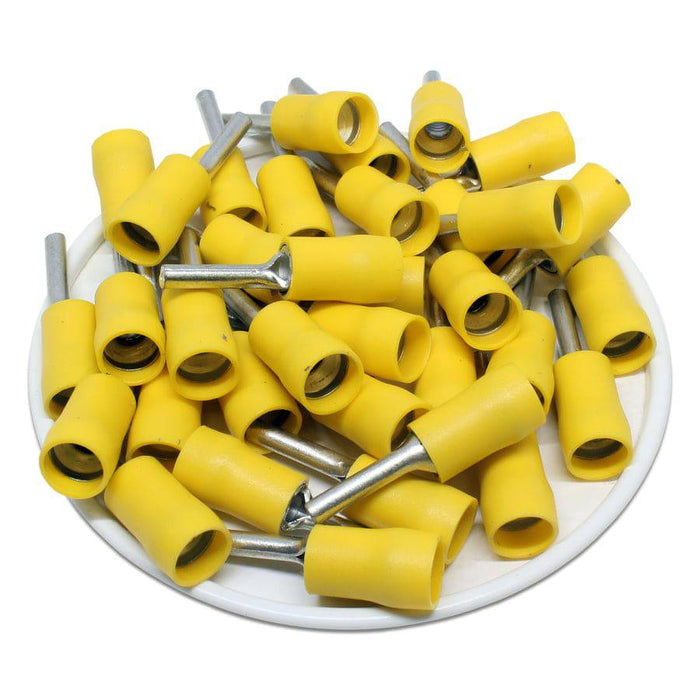

PTD5-13 - Vinyl Insulated Pin Terminals - Double Crimp - 12-10 AWG - Yellow

Original price $12.10 - Original price $12.10
Original price
$12.10
$12.10 - $12.10
Current price $12.10
SKU PTD5-13
Availability:
in stock, ready to be shipped
Piece Quantity: 50 Pieces
Pin terminals offer quick and easy connections in applications where set screws or clamps are used to make electrical contact with the wire. Double crimp terminals are built with an additional inner copper barrel which: 1. Substantially reduces the strain on the wire strands. 2. Transfers strain to the wire jacket. 3. Provides a stronger connection. Double crimp terminals prevent wire terminations from becoming loose under stress or pulled out of the terminal, particularly in areas where vibrations are present.

Dimensions & Features:

Wire Size: 12-10 AWG
Color: Yellow
Terminal Insulation: Vinyl
Terminal Material: Tin-Plated Copper
T: 1.0mm (0.04")
L: 27.0mm (1.06")
F: 14.0mm (0.55")
E: 13.0mm (0.51")
W: 2.8mm (0.11")
D: 6.4mm (0.25")
D1: 3.4mm (0.13")
Max Temperature Rating: 105oC
Max Voltage Rating: 600 Volts
Max Electrical Current: 50AMP
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
None
