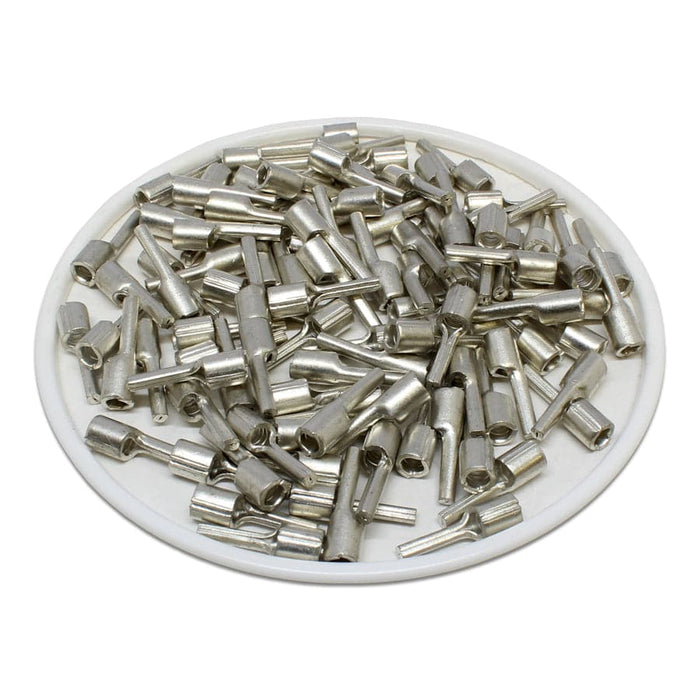

PTNB2-9 - Non Insulated Pin Terminals - 16-14 AWG
$8.53
SKU PTNB2-9
Pin terminals offer quick and easy connections in applications where set screws or clamps are used to make electrical contact with the wire.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 16-14 AWG |
| Seam: | Brazed |
| Material: | Tin-Plated Copper |
| T: | 0.8mm (0.03") |
| L: | 13.8mm (0.54") |
| F: | 9.0mm (0.35") |
| E: | 4.8mm (0.19") |
| W: | 1.9mm (0.08") |
| D: | 4.1mm (0.16") |
| D1: | 2.3mm (0.09") |
| Maxed Electrical Current: | 30AMP |
| UL Approved: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
