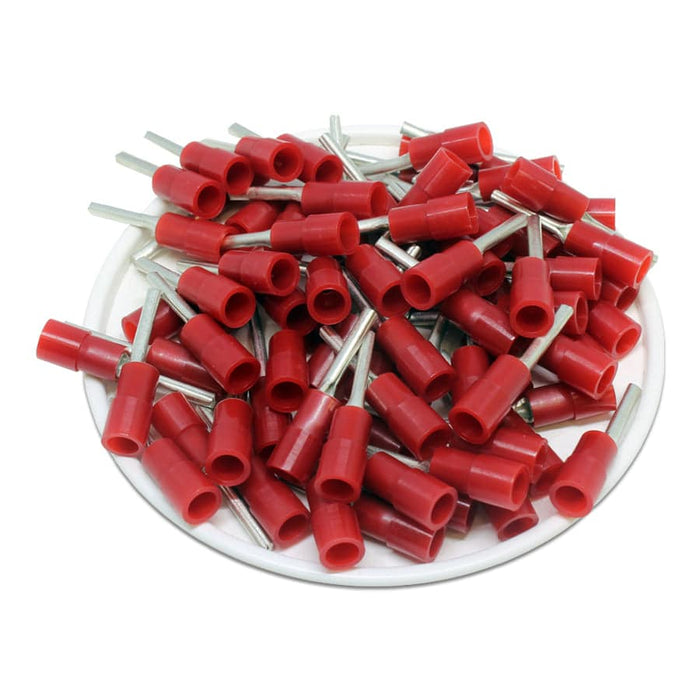

PTNYB1-13 - Nylon Insulated Pin Terminals - 22-16 AWG - Red

Original price $9.66 - Original price $9.66
Original price
$9.66
$9.66 - $9.66
Current price $9.66
SKU PTNYB1-13
Availability:
in stock, ready to be shipped
Piece Quantity: 100 Pieces
true
Pin terminals offer quick and easy connections in applications where set screws or clamps are used to make electrical contact with the wire.

Dimensions & Features:

Wire Size: 22-16 AWG
Color: Red
Terminal Insulation: Nylon
Terminal Material: Tin-Plated Copper
T: 0.7mm (0.03")
L: 23.8mm (0.93")
F: 13.0mm (0.63")
E: 11mm (0.43")
W: 1.9mm (0.07")
D: 4.5mm (0.17")
D1: 1.7mm (0.06")
Max Temperature Rating: 105oC
Max Voltage Rating: 600 Volts
Max Electrical Current: 18AMP
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
None

Documents

Click to view product spec sheet:
