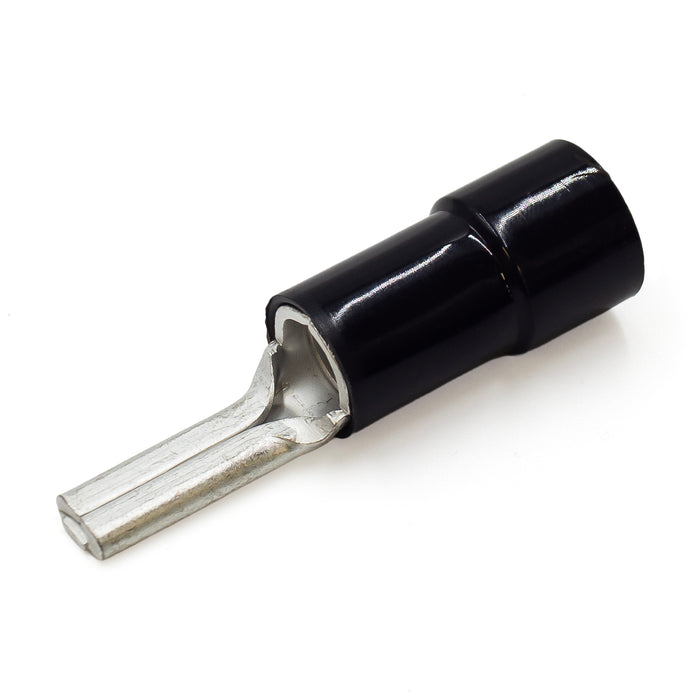

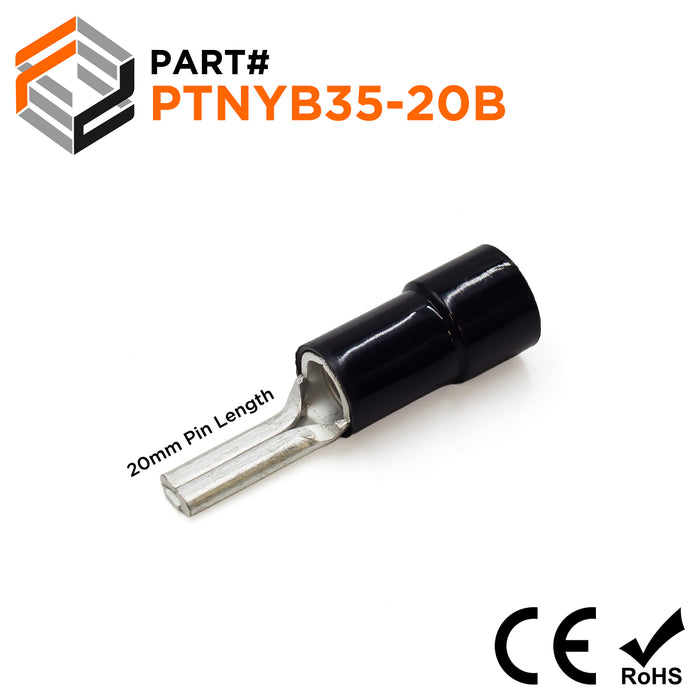

PTNYB35-20B - 2 AWG Nylon Insulated Pin Terminals, 20mm Pin, 10 Pieces
Original price
$13.11
-
Original price
$13.11
Original price
$13.11
$13.11
-
$13.11
Current price
$13.11
SKU PTNYB35-20B
Quantity: 10 Pieces
Availability:
in stock, ready to be shipped
Pin terminals offer quick and easy connections in applications where set screws or clamps are used to make electrical contact with the wire.
Dimensions & Features:
| Wire Size: | 2 AWG |
| Color: | Black |
| T: | 1.5mm (0.059") |
| L: | 52.5mm (2.1") |
| F: | 20mm (0.79") |
| E: | 28mm (1.1") |
| W: |
8mm (0.32") |
| D: |
14mm (0.55") |
| D1: |
8.4mm (0.33") |
| Terminal Insulation: | Nylon |
| Terminal Material: | Tin-Plated Copper |
| Max Voltage Rating: | 105°C - 600 Volts |
| Max Electrical Current: | 170AMP |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:
None
Documents
Click to view product spec sheet:
