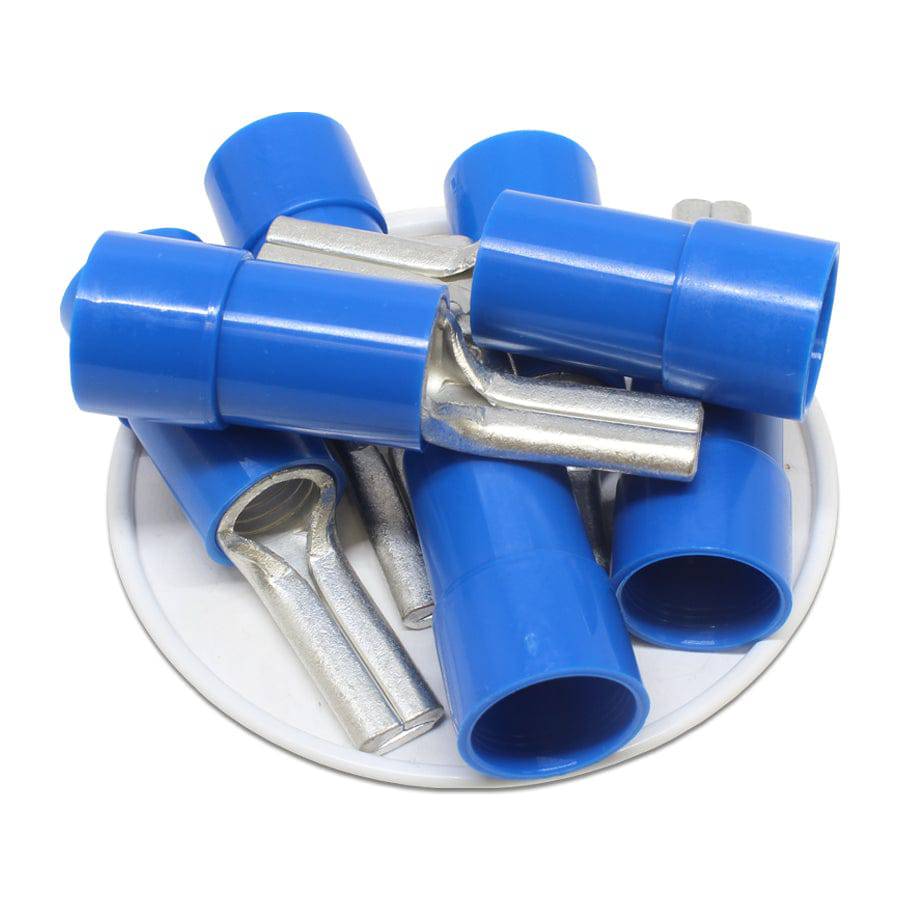

PTNYB50-20 - Nylon Insulated Pin Terminals - 1/0 AWG - Blue

Name: PTNYB50-20 - Nylon Insulated Pin Terminals - 1/0 AWG - Blue
Brand: Ferrules Direct
SKU: PTNYB50-20
Price: 21.53 USD
Availability: InStock

$21.53 - $21.53

$21.53

$21.53 - $21.53

$21.53

SKU PTNYB50-20

Pack Quantity: 10 Pieces

Availability:

in stock, ready to be shipped

Quantity

true

NYLON INSULATED PIN TERMINALS

Pin terminals are used to connect cables and wires to an electrical system. They are commonly used to connect wires to terminal blocks. For standard applications, pin terminals provide quick and easy connections when using of screw or clamp type blocks. However, they can also be used in applications where a slight reduction in wire circumference is needed for tight spaces.

COMPARE TO THESE PARTS:

/* if no javascript: get back ATC button */ body:not(.spo-loaded) [data-shopify="payment-button"], body:not(.spo-loaded).template-product form[action="/cart/add"] [type=submit], body:not(.spo-loaded).template-collection form[action="/cart/add"] [type=submit], body:not(.spo-loaded).template-index form[action="/cart/add"] [type=submit], body:not(.spo-loaded) form[action="/cart/add"] [type=submit] {opacity: 1; pointer-events: all} body:not(.spo-loaded) form[action^="/cart"]:not([action^="/cart/add"]):not(#currency_form) button, body:not(.spo-loaded) form[action^="/cart"]:not([action^="/cart/add"]):not(#currency_form) input[type="submit"], body:not(.spo-loaded) form[action^="/cart"]:not([action^="/cart/add"]):not(#currency_form) input[type="button"], body:not(.spo-loaded) [name="checkout"], body:not(.spo-loaded) [name="goto_pp"], body:not(.spo-loaded) [name="goto_amazon_payments"] {opacity: 1; pointer-events: all}

PRODUCT INFORMATION
Wire Size	1-1/O AWG
Color	Blue
Datasheet (PDF)	Download file
Overall Length (L)	60mm (2.4")
Pin Width (W)	9.5mm (0.37")
Pin Length (F)	20mm (0.79")
Insulation Length (E)	33mm (1.3")
Insulation Inner Diameter (D)	15.5mm (0.61")
Terminal Inner Diameter (D1)	9.5mm (0.38")
Material	Tin Plated Copper
Maximum Electrical Rating	600 Volts
Maximum Electrical Current	230 AMP
Maximum Operating Temperature	105°C
UL Recognized	Yes
UL File Number	E96029
CE Certified	Yes
RoHS Compliant	Yes
REACH Compliant	Yes
