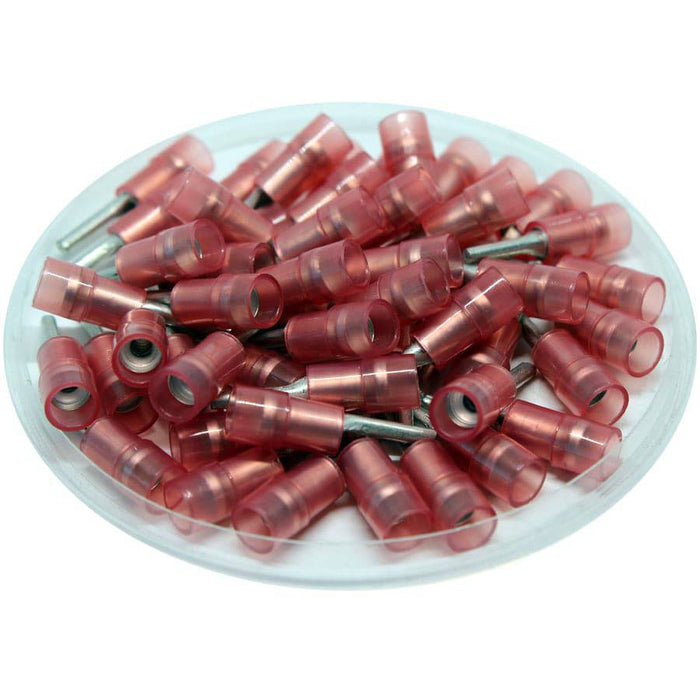

PTNYD1-10 - Nylon Insulated Pin Terminals - 22-16 AWG - Double Crimp
Original price
$12.31
-
Original price
$12.31
Original price
$12.31
$12.31
-
$12.31
Current price
$12.31
SKU PTNYD1-10
Quantity: 100 Pieces
Availability:
in stock, ready to be shipped
Pin terminals offer quick and easy connections in applications where set screws or clamps are used to make electrical contact with the wire.
Dimensions & Features:
| Wire Size: | 22-16 AWG |
| Color: | Red |
| T: | 0.75mm (0.13") |
| L: | 20.8mm (0.81") |
| F: | 10mm (0.39") |
| E: | 11mm (0.43") |
| W: | 1.9mm (0.075") |
| D | 4.5mm (0.17") |
| D1: | 1.7mm (0.067") |
| Terminal Material: | Tin-Plated Copper |
| Insulation Material: | Nylon |
| Max Electrical Rating: | 600 Volts (105°C) |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
