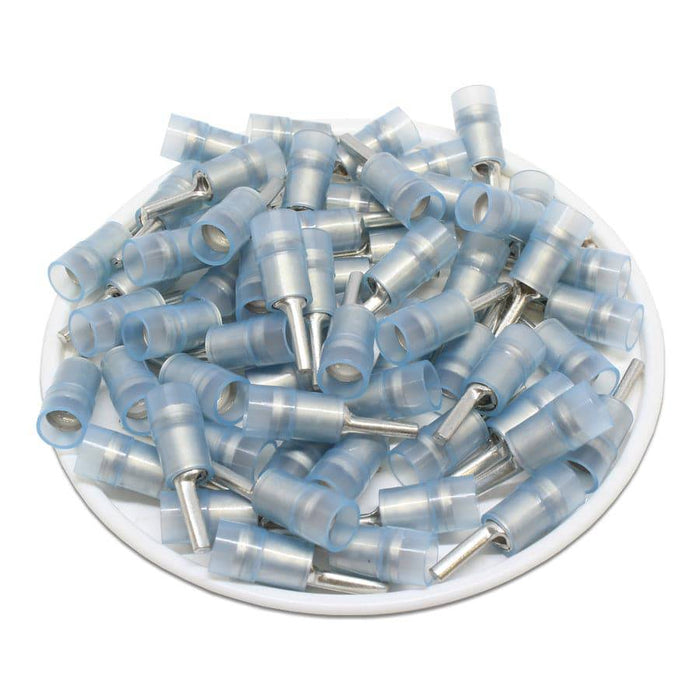

PTNYD2-9 - 16 to 14 AWG Nylon Insulated Pin Terminals, 9mm Pin, Double Crimp, UL Recognized, 100 Pieces
Original price
$19.36
-
Original price
$19.36
Original price
$19.36
$19.36
-
$19.36
Current price
$19.36
SKU PTNYD2-9
Quantity: 100 Pieces
Availability:
in stock, ready to be shipped
Pin terminals offer quick and easy connections in applications where set screws or clamps are used to make electrical contact with the wire.
Dimensions & Features:
| Wire Size: | 16 to 14 AWG |
| Color: | Blue |
| T: | 0.8mm (0.031") |
| L: | 19.8mm (0.78") |
| F: | 9mm (0.35") |
| E: | 11mm (0.43") |
| W: | 1.9mm (0.075") |
| D | 5.2mm (0.21") |
| D1: | 2.3mm (0.091") |
| Terminal Material: | Tin-Plated Copper |
| Insulation Material: | Nylon |
| Max Electrical Rating: | 600 Volts (105°C) |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Technical Drawing:
