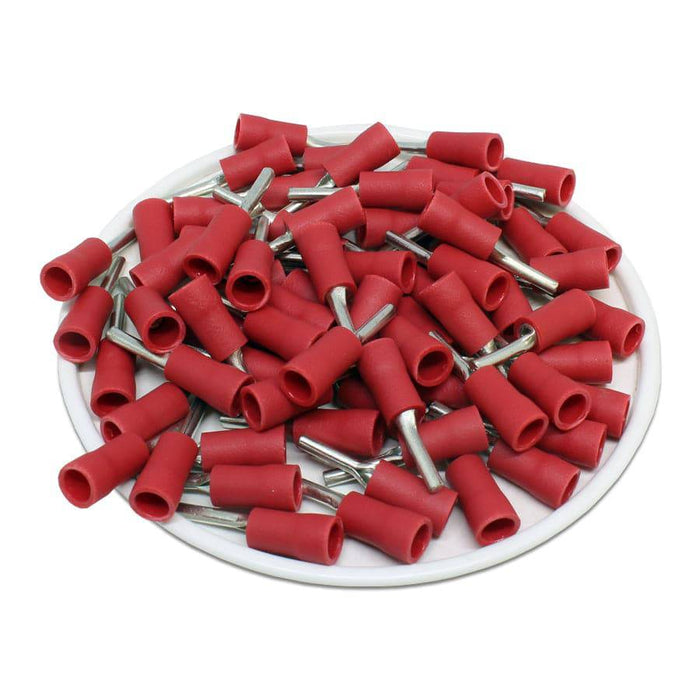

PTV1-10 - Vinyl Pin Terminals - 22-16 AWG
Original price
$6.60
-
Original price
$6.60
Original price
$6.60
$6.60
-
$6.60
Current price
$6.60
SKU PTV1-10
Availability:
in stock, ready to be shipped
Pin terminals offer quick and easy connections in applications where set screws or clamps are used to make electrical contact with the wire.
Dimensions & Features:
Technical Drawing:
McMaster-Carr: 8009K36
Dimensions & Features:
| Wire Size: | 22-16 AWG |
| Color: | Red |
| T: | 0.75mm (0.03") |
| L: | 19.8mm (0.78") |
| F: | 10mm (0.39") |
| E: | 10mm (0.39") |
| W: | 1.9mm (0.08") |
| D: | 4mm (0.16") |
| D1: | 1.7mm (0.07") |
| Seam: | Butted |
| Terminal Material: | Tin-Plated Copper |
| Max Electrical Rating: | 105°C - 600 Volts |
| Max Amp Rating: | 18A |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Technical Drawing:
Cross References
Cross Reference Parts:McMaster-Carr: 8009K36
