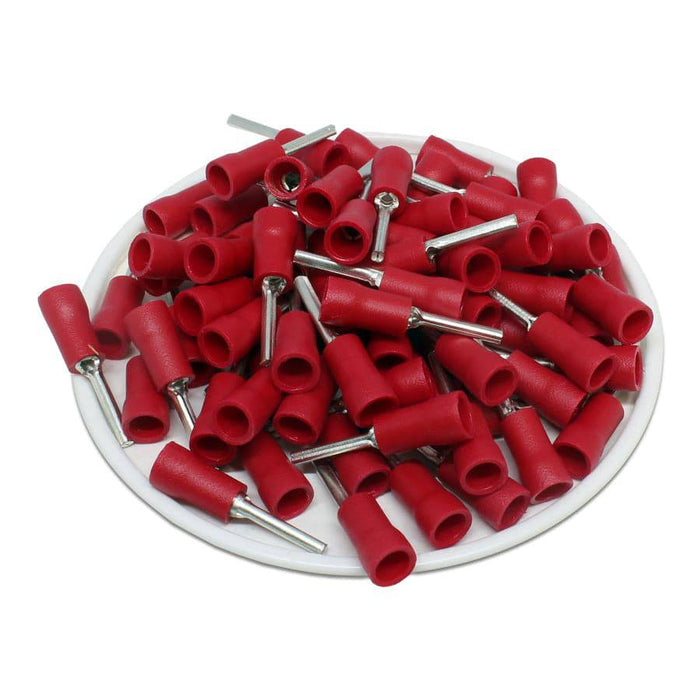

22 to 16 AWG Vinyl Insulated Pin Terminals, 1/2" Pin, UL Approved, 100 Pieces - PTV1-12

Original price $7.22 - Original price $7.22
Original price
$7.22
$7.22 - $7.22
Current price $7.22
SKU PTV1-12
Availability:
in stock, ready to be shipped
Piece Quantity: 100 Pieces

VINYL INSULATED PIN TERMINALS

Pin terminals are used to connect cables and wires to an electrical system. They are commonly used to connect wires to terminal blocks. For standard applications, pin terminals provide quick and easy connections when using of screw or clamp type blocks. However, they can also be used in applications where a slight reduction in wire circumference is needed for tight spaces.



Dimensions & Features:

Wire Size: 22-16 AWG
Color: Red
T: 0.75mm (0.03")
W: 1.9mm (0.08")
L: 21.8mm (0.86")
F: 12mm (0.39")
E: 10mm (0.39")
D: 4mm (0.16")
D1: 1.7mm (0.07")
Seam: Butted
Terminal Material: Tin-Plated Copper
Insulation: Vinyl
Max Electrical Rating: 105°C - 600 Volts
Max Amp Rating: 18A
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes


Technical Drawing:
