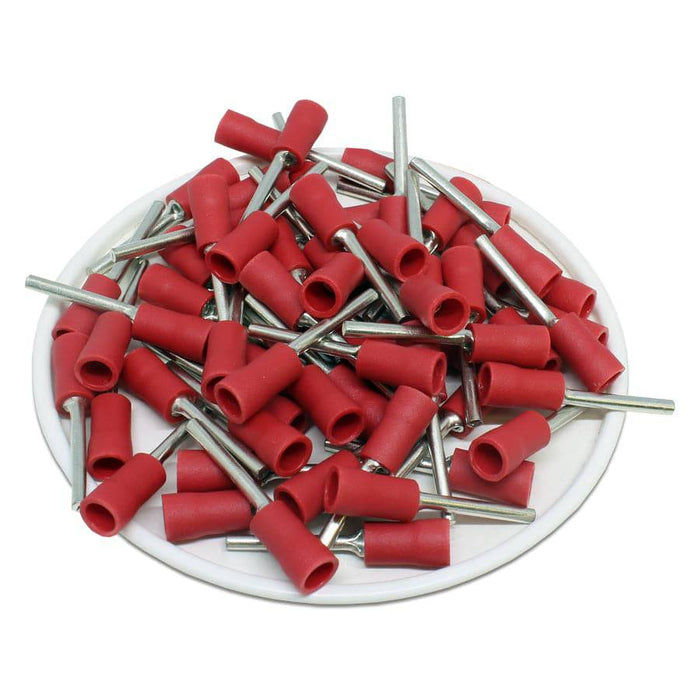

PTV1-16 - Vinyl Pin Terminals - 22-16 AWG
Original price
$9.57
-
Original price
$9.57
Original price
$9.57
$9.57
-
$9.57
Current price
$9.57
SKU PTV1-16
Availability:
in stock, ready to be shipped
Pin terminals offer quick and easy connections in applications where set screws or clamps are used to make electrical contact with the wire.
Dimensions & Features:
Technical Drawing:
None
Dimensions & Features:
| Wire Size: | 22-16 AWG |
| Color: | Red |
| T: | 0.75mm (0.03") |
| L: | 25.8mm (1.01") |
| F: | 16mm (0.63") |
| E: | 10mm (0.39") |
| W: | 1.9mm (0.08") |
| D: | 4mm (0.16") |
| D1: | 1.7mm (0.07") |
| Seam: | Butted |
| Terminal Material: | Tin-Plated Copper |
| Max Electrical Rating: | 105°C - 600 Volts |
| Max Amp Rating: | 18A |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
