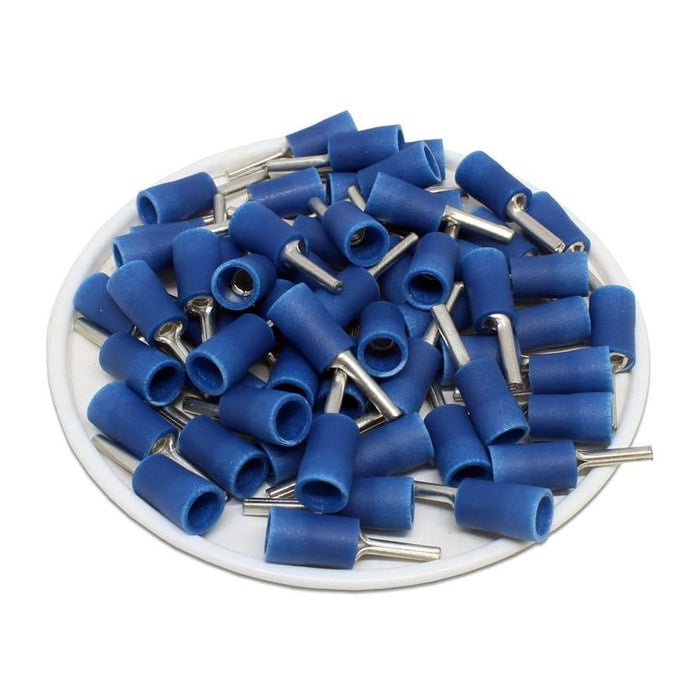

PTV2-10 - Vinyl Pin Terminals - 16-14 AWG
Original price
$6.34
-
Original price
$6.34
Original price
$6.34
$6.34
-
$6.34
Current price
$6.34
SKU PTV2-10
Availability:
in stock, ready to be shipped
Pin terminals offer quick and easy connections in applications where set screws or clamps are used to make electrical contact with the wire.
Dimensions & Features:
Technical Drawing:
McMaster-Carr: 8009K43
Dimensions & Features:
| Wire Size: | 16-14 AWG |
| Color: | Blue |
| T: | 0.8mm (0.03") |
| L: | 19.8mm (0.78") |
| F: | 10mm (0.39") |
| E: | 10mm (0.39") |
| W: | 1.9mm (0.08") |
| D: | 4.5mm (0.18") |
| D1: | 2.3mm (0.09") |
| Seam: | Butted |
| Terminal Material: | Tin-Plated Copper |
| Max Electrical Rating: | 105°C - 600 Volts |
| Max Amp Rating: | 30A |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Technical Drawing:
Cross References
Cross Reference Parts:McMaster-Carr: 8009K43
