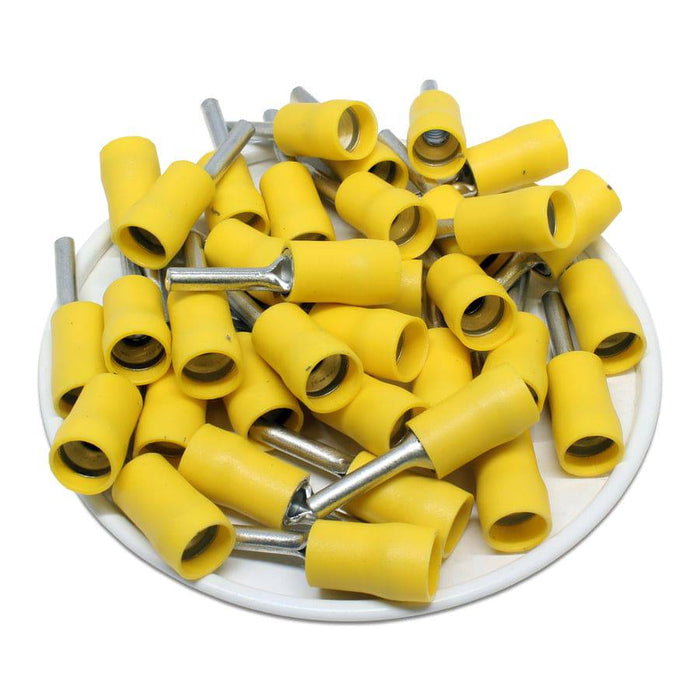

PTV5-13 (PTI-5) Insulated Pin Terminals - 12-10AWG

$16.56
SKU PTV5-13
Piece Quantity

PRODUCT DESCRIPTION

Pin terminals offer quick and easy connections in applications where set screws or clamps are used to make electrical contact with the wire.

DIMENSIONS AND FEATURES
T: 1mm (0.039") Wire Range: 12-10 AWG
L: 27mm (1.06") Color: Yellow
F: 14mm (0.551") Insulation: Vinyl
E: 13mm (0.512") Material: Tin-Plated Copper
W: 2.8mm (0.11") Max Temperature Rating: 105oC
D: 6.4mm (0.252") Max Volt Rating: 600 Volts
D1: 3.4mm (0.134") Max Electrical Current: 50AMP
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

TECHNICAL DRAWING

Cross Reference Parts:

3M: MVU10-55PX-A
Cembre: YVF-P14
IMPA: 794583
Panduit: PV10-P55-LY
Phoenix Contact: 3240068
Thomas Betts: 10RC-55PT
Weidmuller: 9200480000
