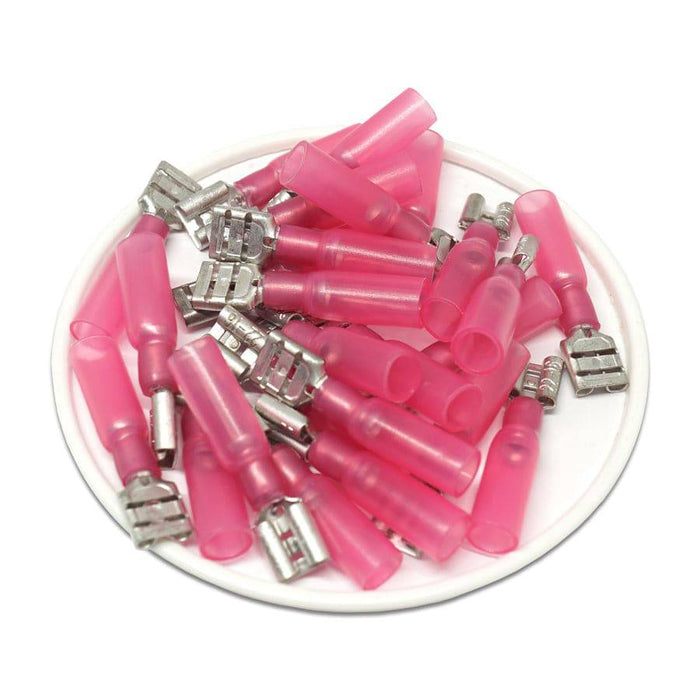

QDSF100-63 - Polyolefin Heat Shrink Female Quick Disc .25" Tab - 22-16 AWG - Red
Original price
$6.46
-
Original price
$6.46
Original price
$6.46
$6.46
-
$6.46
Current price
$6.46
SKU QDSF100-63
Availability:
in stock, ready to be shipped
Heat shrink terminals provide sealed protection against environmental extremities. They insulate, seal and protect joints from physical abuse, abrasion, water, salt, and other corrosive elements.
Dimensions & Features:
Product Drawing:
None:
Dimensions & Features:
| Wire Size: | 22-16 AWG |
| Temperature Rating: | -55oC to 128oC |
| Heat Shrink Insulation: | Polyolefin |
| Terminal Material: | Tin-Plated Copper |
| Color: | Red |
| D: | 4.8mm (0.19") |
| D1: | 1.6mm (0.06") |
| B: | 6.6mm (0.26") |
| E: | 21.0mm (0.83") |
| L: | 30.0mm (1.18") |
Product Drawing:
Cross References
Cross Reference Parts:None:
