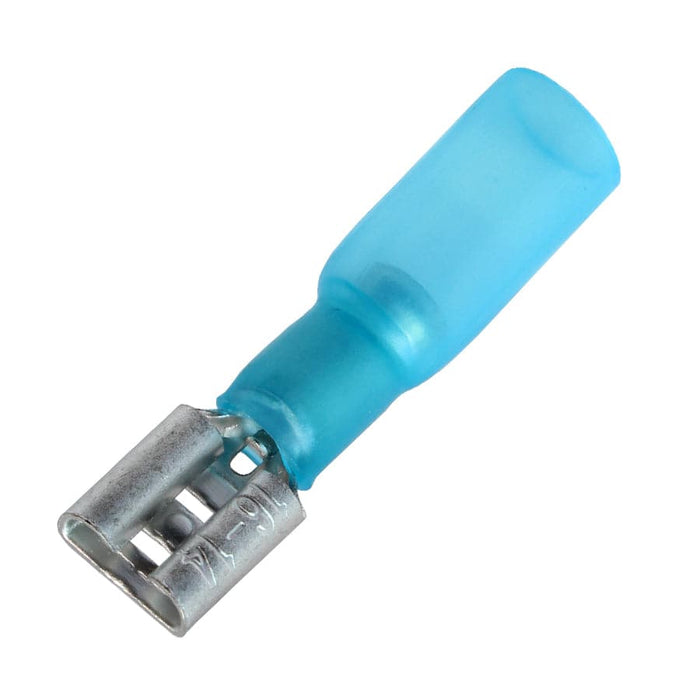

QDSF101-63 - Polyolefin Heat Shrink Female Quick Disc .25" Tab - 16-14AWG - Blue

Original price $7.27 - Original price $7.27
Original price
$7.27
$7.27 - $7.27
Current price $7.27
SKU QDSF101-63
Availability:
in stock, ready to be shipped
Pack Quantity: 25 Pieces
Heat shrink terminals provide sealed protection against environmental extremities. They insulate, seal and protect joints from physical abuse, abrasion, water, salt, and other corrosive elements.

Dimensions & Features:

Wire Size: 16-14 AWG
Temperature Rating: -55oC to 128oC
Heat Shrink Insulation: Polyolefin
Terminal Material: Tin-Plated Copper
Color: Blue
D: 5.8mm (0.23")
D1: 2.2mm (0.09")
B: 6.6mm (0.26")
E: 21.0mm (0.83")
L: 30.0mm (1.18")

Product Drawing:

Cross References

Cross Reference Parts:
None:
