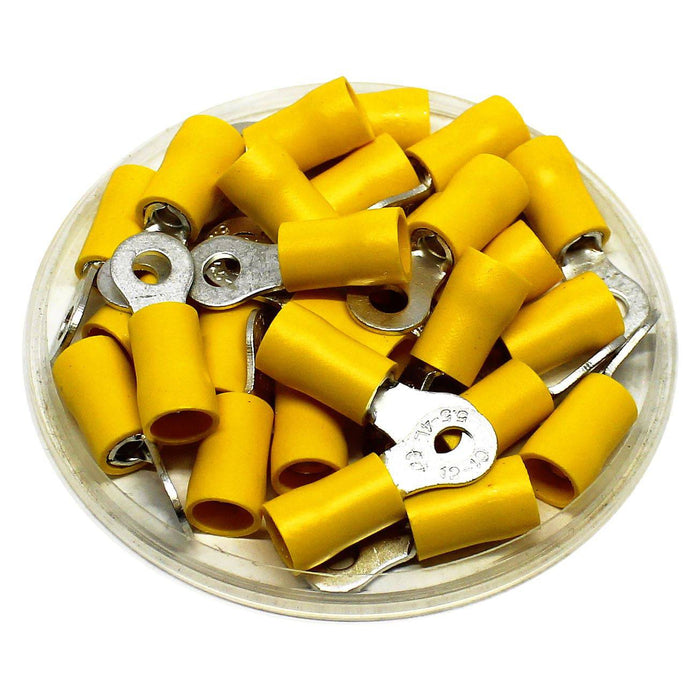

RDL5-4 - Double Crimp Vinyl Insulated Ring Terminals - 12 AWG to 10 AWG
Original price
$9.66
-
Original price
$9.66
Original price
$9.66
$9.66
-
$9.66
Current price
$9.66
SKU RDL5-4
Availability:
in stock, ready to be shipped
PRODUCT DESCRIPTION | |||
Ring terminals offer a tight and secure connection in high vibration areas. The insulated sleeve is securely fastened to metal grip sleeve providing potection to the crimp joint. Color coded according to industry standards. |
|||
DIMENSIONS AND FEATURES | |||
Wire Range: | 12-10 AWG | Color: | Yellow |
T: | 1mm (.04") | Terminal Material: | Tin-Plated Copper |
L: | 26.1mm (1.03") | Insulation Material: | Vinyl |
F: | 8.3mm (0.33") | Stud Size: | #8 |
E: | 13.5mm (0.53") | Temperature Rating: | 1050C |
W: | 9.5mm (0.37") | Voltage Rating: | 600 Volts |
D: | 6.8mm (0.27") | UL Recognized: | Yes |
D1: | 3.4mm (.13") | CE Certified: | Yes |
D2: | 4.3mm (0.17) | RoHS Compliant | Yes |
TECHNICAL DRAWING |
|||
Cross Reference Parts:
