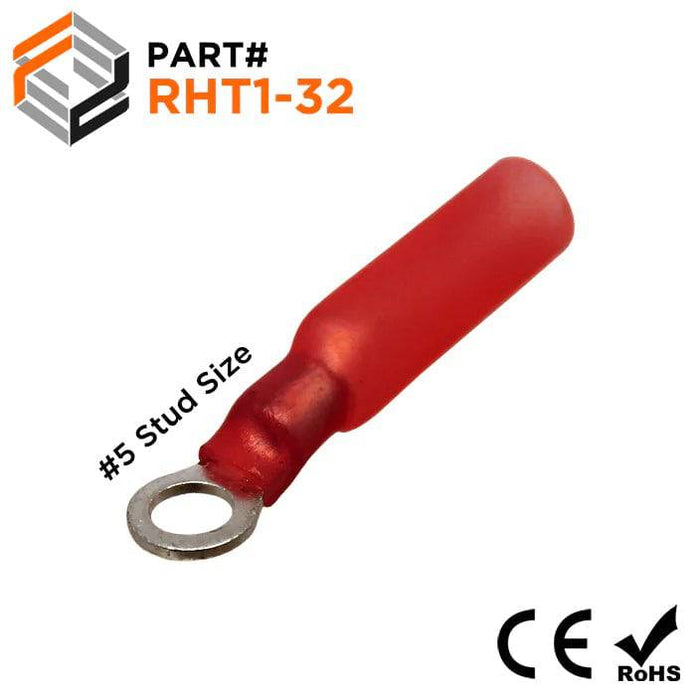

22 to 16 AWG Heat Shrink Ring Terminals, #5 Stud, Polyethylene, 25 Pieces - RHTS1-3.2

Original price $5.90 - Original price $5.90
Original price
$5.90
$5.90 - $5.90
Current price $5.90
SKU RHT1-32
Availability:
in stock, ready to be shipped

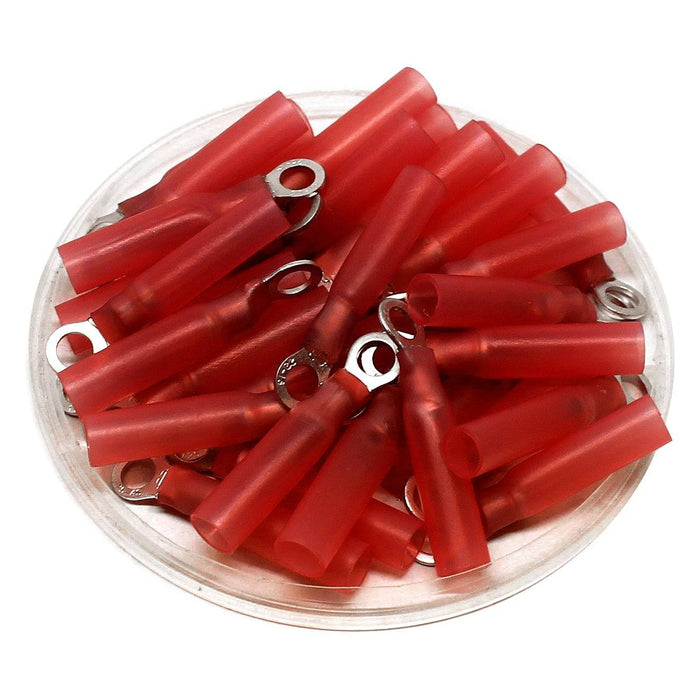

Pack Quantity: 25 Pieces

HEAT SHRINKABLE RING TERMINALS

Heat shrink insulated ring terminals are suitable for a wide variety of applications from marine use to automotive and everything in between. The heat shrink is adhesive-lined and color-coded to the industry standard wire range. The terminal will seal out water, and protect the connection from corrosion. The semi-translucent heat shrink material allows for easy visual inspection of the crimped terminal. The heat shrink tube has the added advantage of acting as a strain relief on the wire for added pull strength.

DIMENSIONS & FEATURES:

Wire Size: 22 to 16 AWG
Stud Size: #4 Stud
Color: Red
L: 25mm (0.98")
D2:
3.2mm (0.13")
W: 5.5mm (0.22")
Material: Tin Plated Copper
Insulation: Polyethylene
Max Electrical Rating: 600 Volts
Temperature Rating: -67°F to 221°F (-55°C to 105°C)
CE Certified: Yes
RoHS Compliant: Yes



DRAWING:


Cross References

Cross Reference Parts:
None

Documents

Click to view product spec sheet:



COMPARE TO THESE PARTS:
