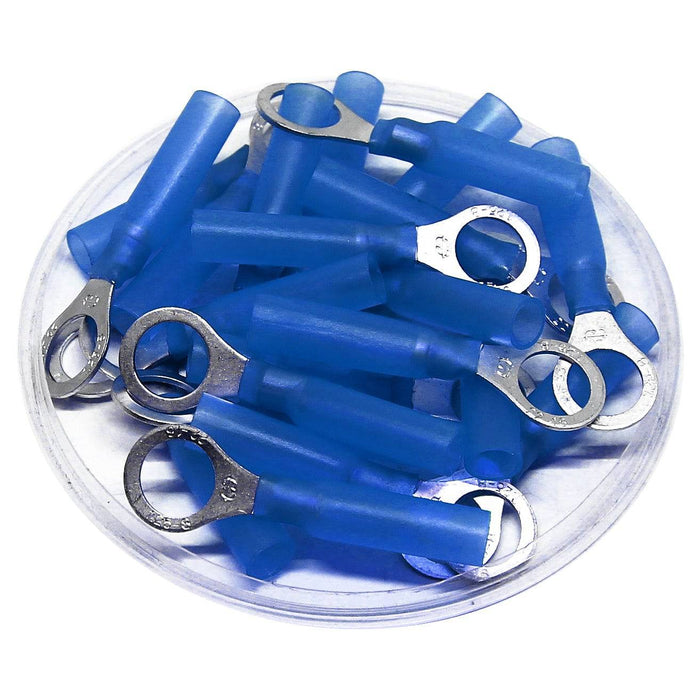

16 to 14 AWG Heat Shrink Ring Terminals, 5/16" Stud, Polyethylene, 25 Pieces - RHT2-8

Original price $8.80 - Original price $8.80
Original price
$8.80
$8.80 - $8.80
Current price $8.80
SKU RHT2-8
Availability:
in stock, ready to be shipped
Pack Quantity: 25 Pieces
true

HEAT SHRINKABLE RING TERMINALS

Heat shrink insulated ring terminals are suitable for a wide variety of applications from marine use to automotive and everything in between. The heat shrink is adhesive-lined and color-coded to the industry standard wire range. The terminal will seal out water, and protect the connection from corrosion. The semi-translucent heat shrink material allows for easy visual inspection of the crimped terminal. The heat shrink tube has the added advantage of acting as a strain relief on the wire for added pull strength.

DIMENSIONS & FEATURES:

Wire Size: 16 to 14 AWG
Stud Size: 5/16" Stud
Color: Blue
L: 35.5mm (1.40")
D2:
8.4mm (0.33")
W: 12mm (0.47")
Material: Tin Plated Copper
Insulation: Polyethylene
Max Electrical Rating: 600 Volts
Temperature Rating: -67°F to 221°F (-55°C to 105°C)
CE Certified: Yes
RoHS Compliant: Yes


DRAWING:


Cross References

Cross Reference Parts:
None

Documents

Click to view product spec sheet:



COMPARE TO THESE PARTS:
