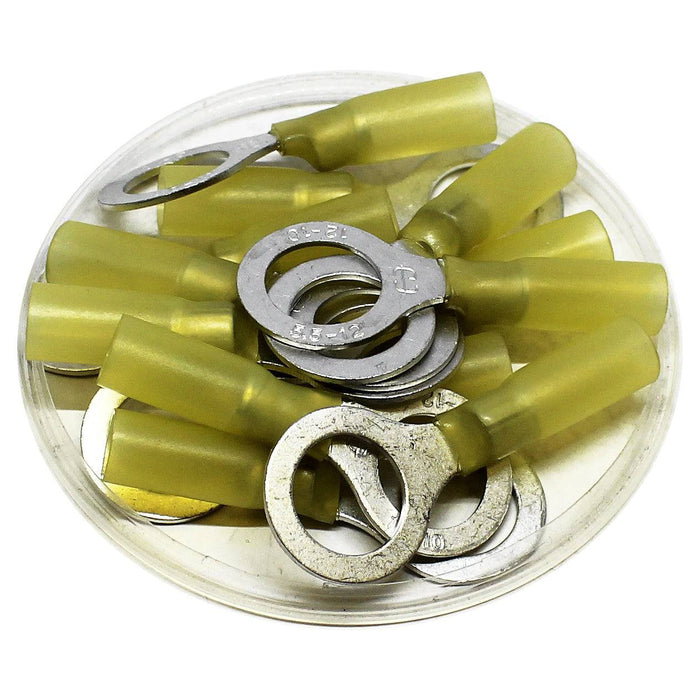

12 to 10 AWG Heat Shrink Ring Terminals, 1/2" Stud, Polyethylene, 25 Pieces - RHT5-12

Original price $3.68 - Original price $3.68
Original price
$3.68
$3.68 - $3.68
Current price $3.68
SKU RHT5-12
Availability:
in stock, ready to be shipped
Pack Quantity: 10 Pieces

HEAT SHRINKABLE RING TERMINALS

Heat shrink insulated ring terminals are suitable for a wide variety of applications from marine use to automotive and everything in between. The heat shrink is adhesive-lined and color-coded to the industry standard wire range. The terminal will seal out water, and protect the connection from corrosion. The semi-translucent heat shrink material allows for easy visual inspection of the crimped terminal. The heat shrink tube has the added advantage of acting as a strain relief on the wire for added pull strength.

DIMENSIONS & FEATURES:

Wire Size: 12 to 10 AWG
Stud Size: 1/2" Stud
Color: Yellow
L: 46.8mm (1.84")
D2:
13mm (0.51")
W: 19.2mm (0.76")
Material: Tin Plated Copper
Insulation: Polyethylene
Max Electrical Rating: 600 Volts
Temperature Rating: -67°F to 221°F (-55°C to 105°C)
CE Certified: Yes
RoHS Compliant: Yes


DRAWING:


Cross References

Cross Reference Parts:
None
