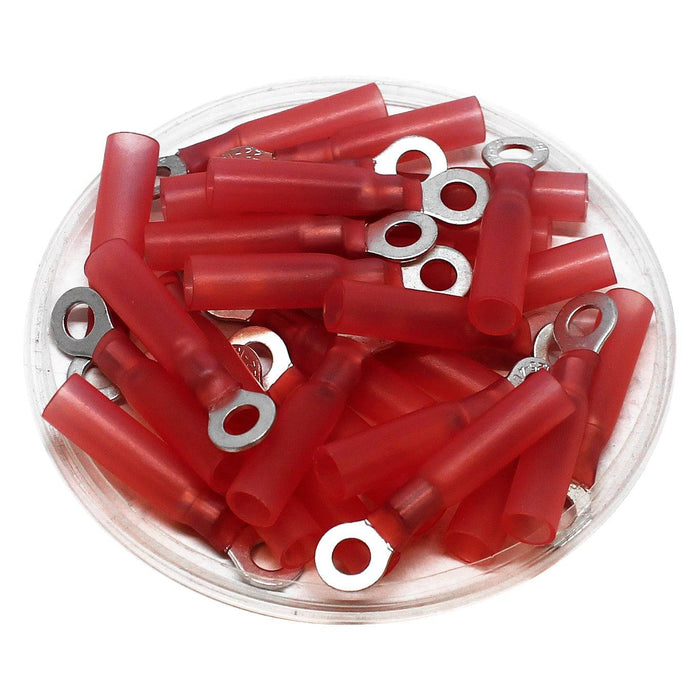

22 to 16 AWG Heat Shrink Ring Terminals, #8 Stud, Polyethylene, 25 Pieces, RHTL1-4
Original price
$6.50
-
Original price
$6.50
Original price
$6.50
$6.50
-
$6.50
Current price
$6.50
SKU RHTL1-4
Availability:
in stock, ready to be shipped
HEAT SHRINKABLE RING TERMINALS
Heat shrink insulated ring terminals are suitable for a wide variety of applications from marine use to automotive and everything in between. The heat shrink is adhesive-lined and color-coded to the industry standard wire range. The terminal will seal out water, and protect the connection from corrosion. The semi-translucent heat shrink material allows for easy visual inspection of the crimped terminal. The heat shrink tube has the added advantage of acting as a strain relief on the wire for added pull strength.
DIMENSIONS & FEATURES:
Wire Size: | 22 to 16 AWG |
Stud Size: | #8 Stud |
Color: | Red |
L: | 28.3mm (1.11") |
D2: |
4.3mm (0.17") |
W: | 8.0mm (0.32") |
Material: | Tin Plated Copper |
Insulation: | Polyethylene |
Max Electrical Rating: | 600 Volts |
Temperature Rating: | -67°F to 221°F (-55°C to 105°C) |
CE Certified: | Yes |
RoHS Compliant: | Yes |
DRAWING:
![](https://cdn.shopify.com/s/files/1/0097/6784/5966/files/RHT_Drawing_500x500_Red_b5fbe4d9-2c18-43bc-8a5a-bee1ee128665_480x480.jpg?v=1602602803)
Cross References
Cross Reference Parts:
None
