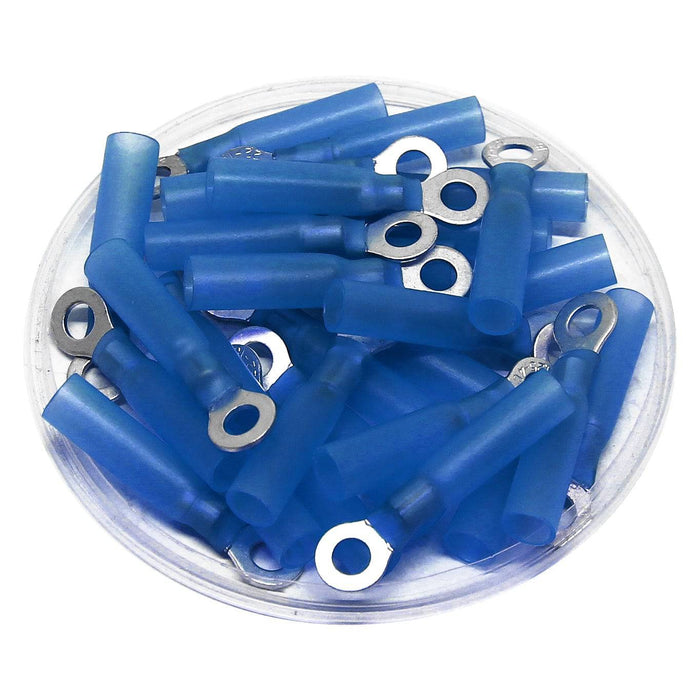

RHTM2-3.7 - Polyethylene Insulated Heat Shrinkable Ring Terminals - 16-14 AWG

Sold out
Original price $7.30 - Original price $7.30
Original price
$7.30
$7.30 - $7.30
Current price $7.30
SKU RHTM2-37-25
Availability:
Out of stock
Pack Quantity: 25 Pieces
Heat shrink terminals provide sealed protection against environmental extremities. They insulate, seal and protect joints from physical abuse, abrasion, water, salt, and other corrosive elements.

Dimensions & Features:

Wire Size: 16-14 AWG
Stud Size: #6 Stud
Color: Blue
L: 28.1mm (1.11")
D2:
3.7mm (0.15")
W: 6.6mm (0.26")
Material: Tin Plated Copper
Insulation: Polyethylene
Max Electrical Rating: 600 Volts
Temperature Rating: -55°C to 105°C
Shrink Temperature: 180°C
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:
