RM040-01B9L - Open Barrel Ring Terminal - 22-16 AWG - #8 Stud

Original price $0.00 - Original price $8.63
Original price
$8.63
$0.00 - $8.63
Current price $8.63
SKU RM040-01B9L
Availability:
in stock, ready to be shipped
Availability:
Out of stock

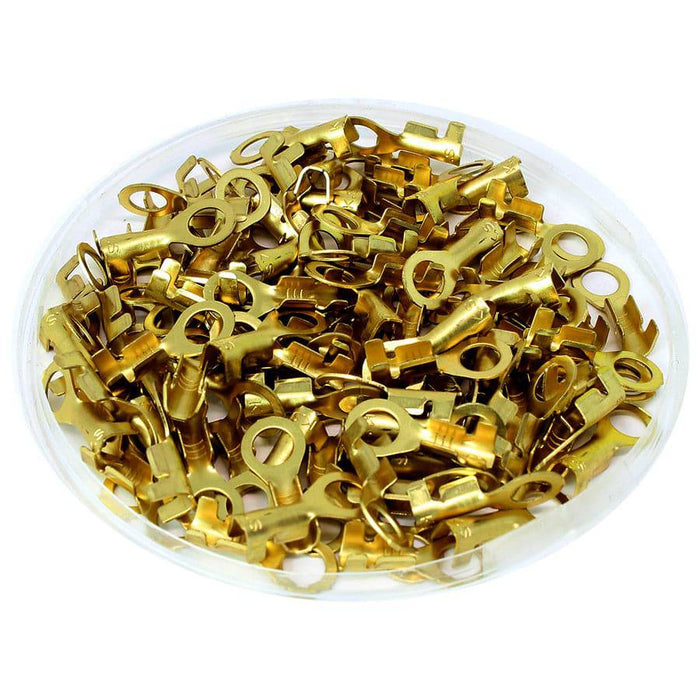

Pack Quantity: 100 Pieces

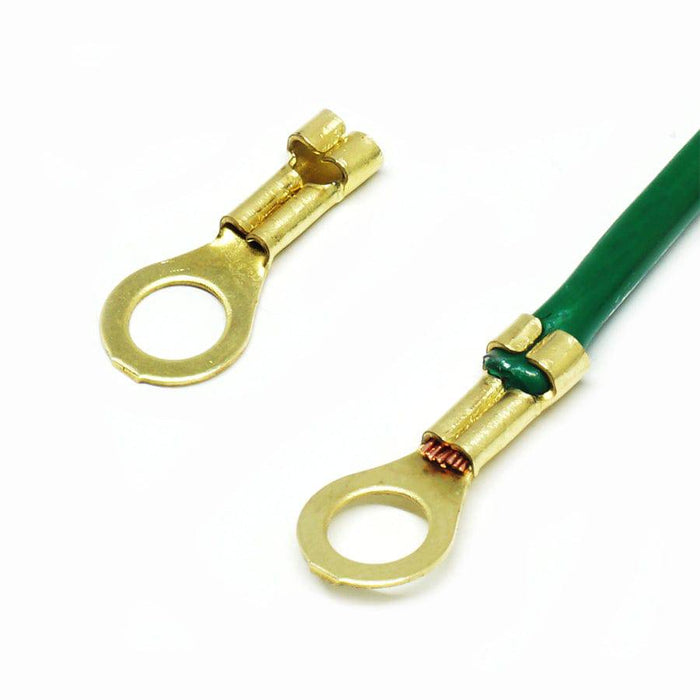

Open barrel terminals (Faston B Type Terminals) have two sets of open "teeth" that bite down into the wire and insulation to secure and hold onto them. This gives a much tighter hold than a closed barrel terminal would, making it ideal for applications that would cause the wire to move around or be pulled often.

Dimensions & Features:

Wire Size: 22-16 AWG
Stud Size: #8 Stud
L: 16mm (0.63")
F: 4.3mm (0.17")
W: 7.0mm (0.27")
Material: Brass
Surface Treatment: Standard Chemical Treatment
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
None

Documents

Click to view product spec sheet:
