RNB1-14 - Non Insulated Ring Terminal 22-16AWG
Original price
$25.29
-
Original price
$25.29
Original price
$25.29
$25.29
-
$25.29
Current price
$25.29
SKU RNB1-14
Availability:
in stock, ready to be shipped

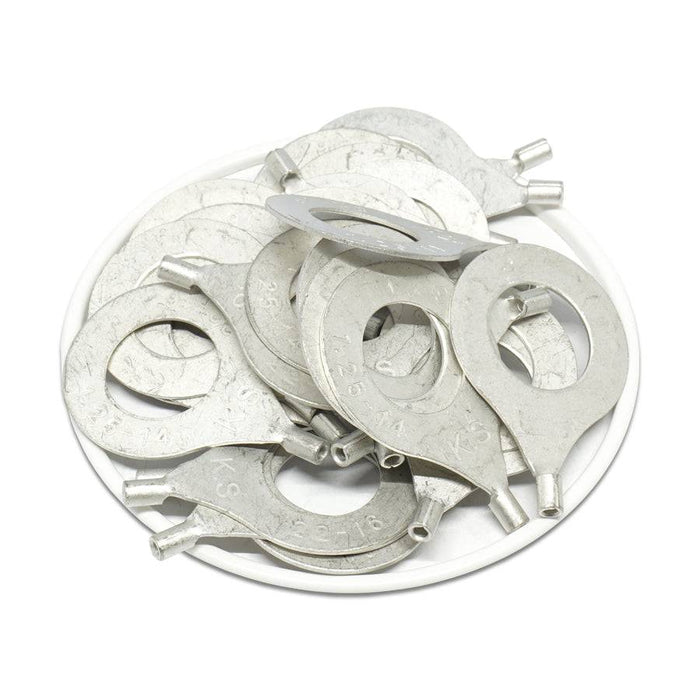

Ring tongue design offers a tight and secure connection in high vibration areas, the non insulated crimp joint meets industry standards with internal barrel serrations for good wire contact and maximum tensile strength.
Product Drawing:
None:
| Wire Range: | 22-16 AWG |
| T: | 0.03" (0.8mm) |
| L: | 1.54" (39.3mm) |
| F: | 0.83" (21.0mm) |
| E: | 0.19" (4.8mm) |
| W: | 1.06" (27.0mm) |
| D: | 0.13" (3.4mm) |
| D1: | 0.07" (1.7mm) |
| D2: | 0.59" (15.0mm) |
| Terminal Material: | Tin-Plated Copper |
| Stud Size: | 9/16 Stud |
| Temperature Rating: | 150oC - 600 Volts |
| Max Electrical Rating: | 18 AMP |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
