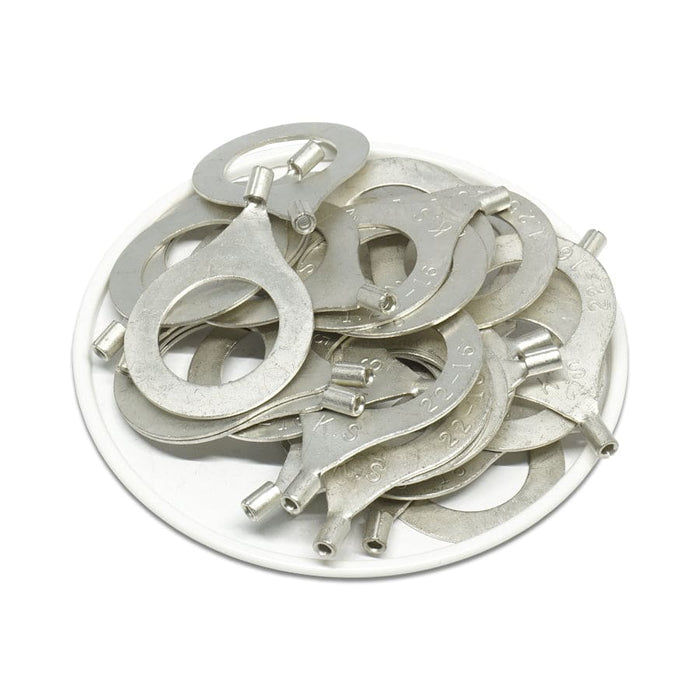

RNB1-16 - Non Insulated Ring Terminal 22-16AWG

Original price $25.29 - Original price $25.29
Original price
$25.29 - $25.29
Current price $25.29
in stock, ready to be shipped
Pack Quantity: 50 Pieces
Ring tongue design offers a tight and secure connection in high vibration areas, the non insulated crimp joint meets industry standards with internal barrel serrations for good wire contact and maximum tensile strength.

Wire Range: 22-16 AWG
T: 0.03" (0.8mm)
L: 1.54" (39.3mm)
F: 0.83" (21.0mm)
E: 0.19" (4.8mm)
W: 1.06" (27.0mm)
D: 0.13" (3.4mm)
D1: 0.07" (1.7mm)
D2: 0.67" (17.0mm)
Terminal Material: Tin-Plated Copper
Stud Size: 5/8 Stud
Temperature Rating: 150oC - 600 Volts
Max Electrical Rating: 18 AMP
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:
