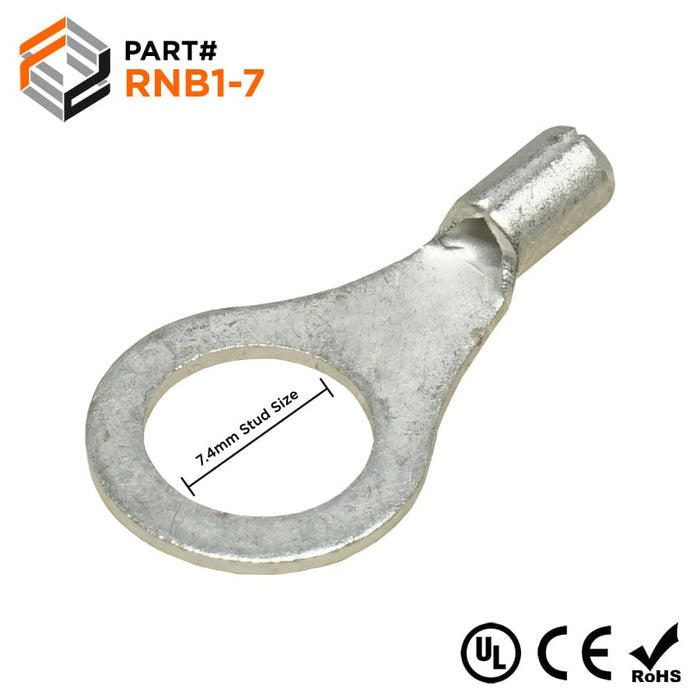

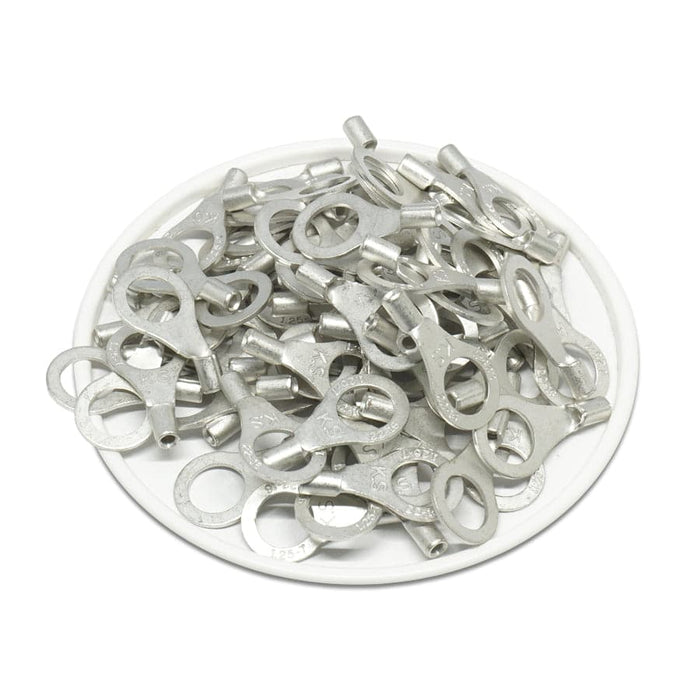

RNB1-7 - Non Insulated Ring Terminal 22-16AWG
$11.42
SKU RNB1-7
Ring tongue design offers a tight and secure connection in high vibration areas, the non insulated crimp joint meets industry standards with internal barrel serrations for good wire contact and maximum tensile strength.
Product Drawing:
McMaster-Carr: 7113K553
Panduit: P18-56R-C
Tyco AMP: 34114
| Wire Range: | 22-16 AWG |
| T: | 0.03" (0.7mm) |
| L: | 0.89" (21.8mm) |
| F: | 0.43" (11.0mm) |
| E: | 0.19" (4.8mm) |
| W: | 0.46" (11.6mm) |
| D: | 0.13" (3.4mm) |
| D1: | 0.07" (1.7mm) |
| D2: | 0.29" (7.4mm) |
| Terminal Material: | Tin-Plated Copper |
| Stud Size: | 5/16 Stud |
| Temperature Rating: | 150oC - 600 Volts |
| Max Electrical Rating: | 18 AMP |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:McMaster-Carr: 7113K553
Panduit: P18-56R-C
Tyco AMP: 34114
