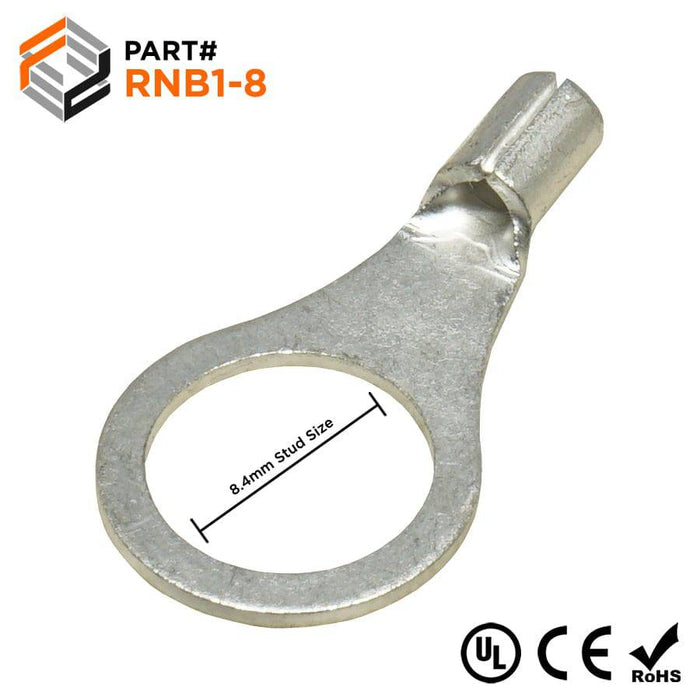

RNB1-8 - Non Insulated Ring Terminal 22-16AWG

$11.42
SKU RNB1-8
Piece Quantity
Ring tongue design offers a tight and secure connection in high vibration areas, the non insulated crimp joint meets industry standards with internal barrel serrations for good wire contact and maximum tensile strength.

Wire Range: 22-16 AWG
T: 0.03" (0.7mm)
L: 0.85" (21.6mm)
F: 0.37" (9.5mm)
E: 0.19" (4.8mm)
W: 0.46" (11.6mm)
D: 0.13" (3.4mm)
D1: 0.07" (1.7mm)
D2: 0.33" (8.4mm)
Terminal Material: Tin-Plated Copper
Stud Size: 5/16 Stud
Temperature Rating: 150oC - 600 Volts
Max Electrical Rating: 18 AMP
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
Cembre: S1.5-M8
Elecdirect: R2A56
