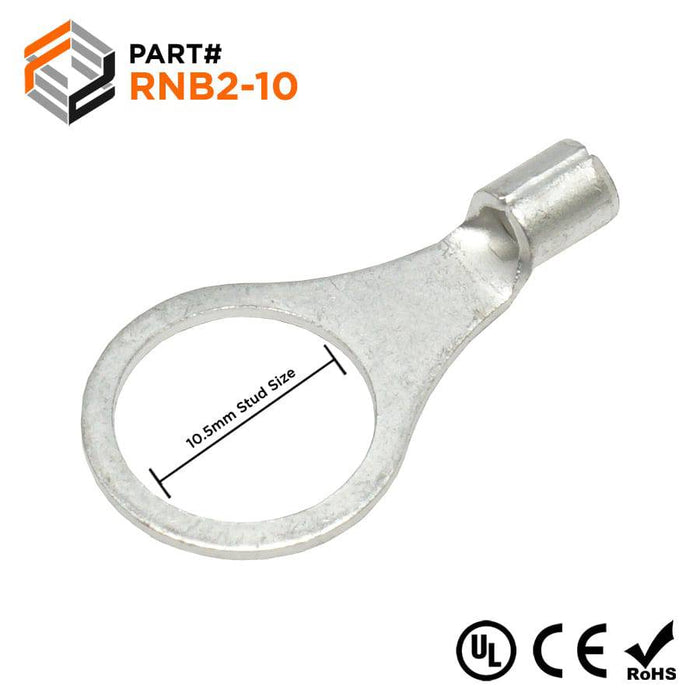

RNB2-10 Non Insulated Ring Terminal - 16-14AWG
Original price
$13.00
-
Original price
$13.00
Original price
$13.00
$13.00
-
$13.00
Current price
$13.00
SKU RNB2-10
Availability:
in stock, ready to be shipped
Ring terminals offer a tight and secure connection in high vibration areas. The brazed seam construction protects the terminal's barrel from splitting when crimped
Product Drawing:
3M: M14-38RX
Cembre: S2.5-M10
Elecdirect: R2B38
McMaster-Carr: 7113K94
Panduit: P14-38R-C
Phoenix Contact: 3240096
Tyco AMP: 34126
| Wire Range: | 16-14 AWG |
| T: | 0.03" (0.8mm) |
| L: | 1.00" (25.5mm) |
| F: | 0.55" (13.9mm) |
| E: | 0.19" (4.8mm) |
| W: | 0.54" (13.6mm) |
| D: | 0.16" (4.1mm) |
| D1: | 0.09" (2.3mm) |
| D2: | 0.41" (10.5mm) |
| Terminal Material: | Tin-Plated Copper |
| Stud Size: | 3/8 Stud |
| Temperature Rating: | 150oC - 600 Volts |
| Max Electrical Rating: | 30 AMP |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:3M: M14-38RX
Cembre: S2.5-M10
Elecdirect: R2B38
McMaster-Carr: 7113K94
Panduit: P14-38R-C
Phoenix Contact: 3240096
Tyco AMP: 34126
