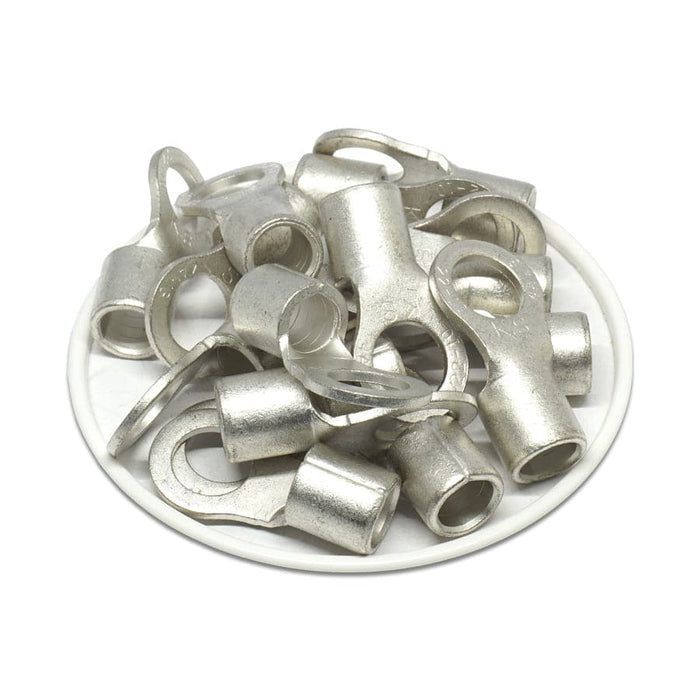

RNB22-10 - Non Insulated Ring Terminal - 4AWG
Original price
$23.86
-
Original price
$23.86
Original price
$23.86
$23.86
-
$23.86
Current price
$23.86
SKU RNB22-10
Availability:
in stock, ready to be shipped
Ring tongue design offers a tight and secure connection in high vibration areas, the non insulated crimp joint meets industry standards with internal barrel serrations for good wire contact and maximum tensile strength.
Product Drawing:
3M: M4-38RX
McMaster-Carr: 7113K252
Phoenix Contact: 3240102
Thomas Betts: F4-38
Tyco AMP: 33471
| Wire Range: | 4 AWG |
| T: | 0.07" (1.7mm) |
| L: | 1.3" (33.5mm) |
| F: | 0.53" (13.5mm) |
| E: | 0.47" (12.0mm) |
| W: | 0.46" (16.5mm) |
| D: | 0.45" (11.5mm) |
| D1: | 0.30" (7.7mm) |
| D2: | 0.41" (10.5mm) |
| Terminal Material: | Tin-Plated Copper |
| Stud Size: | 3/8 Stud |
| Temperature Rating: | 150oC - 600 Volts |
| Max Electrical Rating: | 125 AMP |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:3M: M4-38RX
McMaster-Carr: 7113K252
Phoenix Contact: 3240102
Thomas Betts: F4-38
Tyco AMP: 33471
