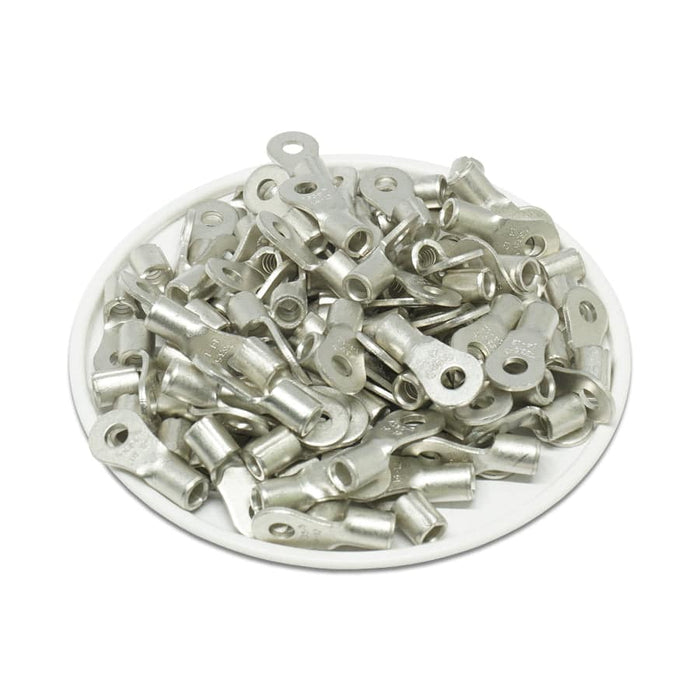

RNB3-3.2 - Non Insulated Ring Terminal - 14-12 AWG - #5 Stud
Original price
$13.69
-
Original price
$13.69
Original price
$13.69
$13.69
-
$13.69
Current price
$13.69
SKU RNB3-32
Availability:
in stock, ready to be shipped
Ring terminals offer a tight and secure connection in high vibration areas. The brazed seam construction protects the terminal's barrel from splitting when crimped
Product Drawing:
None:
| Wire Range: | 14-12 AWG |
| T: | 0.04" (1.0mm) |
| L: | 0.69" (18.0mm) |
| F: | 0.32" (8.0mm) |
| E: | 0.24" (6.0mm) |
| W: | 0.32" (8.0mm) |
| D: | 0.20" (5.1mm) |
| D1: | 0.11" (2.9mm) |
| D2: | 0.13" (3.2mm) |
| Terminal Material: | Tin-Plated Copper |
| Stud Size: | #4 Stud |
| Temperature Rating: | 150oC - 600 Volts |
| Max Electrical Rating: | 35 AMP |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None:
