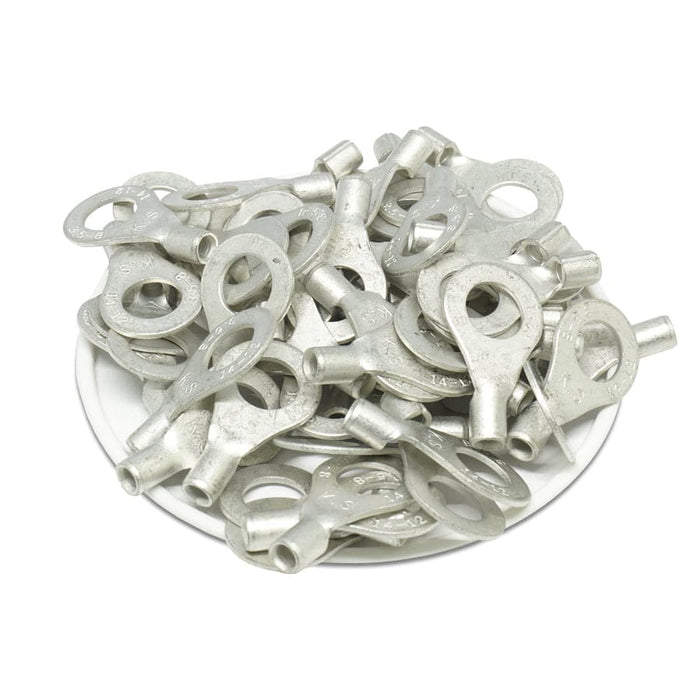

14-12 AWG Non Insulated Ring Terminals, 5/16" Stud, UL Approved, 100 Pieces - RNB3-8
NON INSULATED RING TERMINALS
Ring terminals offer a tight and secure connection in high vibration areas. Simply crimp the ring terminals to your stranded wires to be attached to studs or posts. Non Insulated ring terminals come in a variety of sizes and styles in a brazed or butted format. The brazed seam format protects the terminal's barrel from splitting when crimped. These terminals can also be soldered or applied with heat shrink tubing to insulate and protect the connection.
Application Info:
Ring terminals (sometimes called split ring terminals): electrical contact is made by the flat surface of the ring, while mechanically they are attached by passing a screw or bolt through them. Their sizes can be determined by the gauge (AWG) of the conducting wire, and the interior and exterior diameters.
| Wire Range: | 14-12 AWG |
| T: | 0.04" (1.0mm) |
| L: | 1.10" (27.0mm) |
| F: | 0.52" (13.3mm) |
| E: | 0.24" (6.0mm) |
| W: | 0.28" (15.0mm) |
| D: | 0.20" (5.1mm) |
| D1: | 0.11" (2.9mm) |
| D2: | 0.33" (8.4mm) |
| Terminal Material: | Tin-Plated Copper |
| Seam: | Brazed |
| Stud Size: | 5/16" Stud |
| Temperature Rating: | 150oC - 600 Volts |
| Max Electrical Rating: | 35 AMP |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
