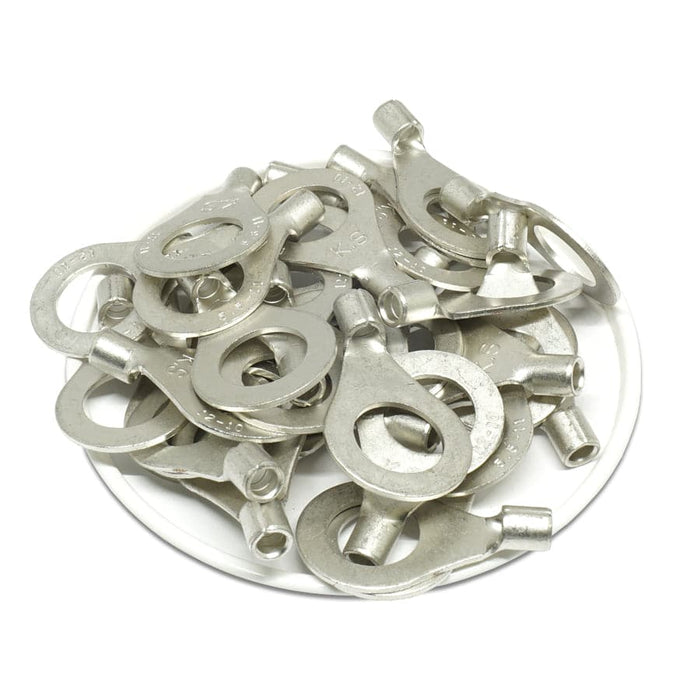

RNB5-11 - Non Insulated Ring Terminal 12-10AWG

Pack Quantity
Ring terminals offer a tight and secure connection in high vibration areas. The brazed seam construction protects the terminal's barrel from splitting when crimped

Wire Range: 12-10 AWG
T: 0.04" (1mm)
L: 1.2" (31.6mm)
F: 0.63" (16.0mm)
E: 0.24" (6.0mm)
W: 0.76" (19.2mm)
D: 0.22" (5.6mm)
D1: 0.13" (3.4mm)
D2: 0.45" (11.5mm)
Terminal Material: Tin-Plated Copper
Stud Size: 7/16 Stud
Temperature Rating: 150oC - 600 Volts
Max Electrical Rating: 50 AMP
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:
