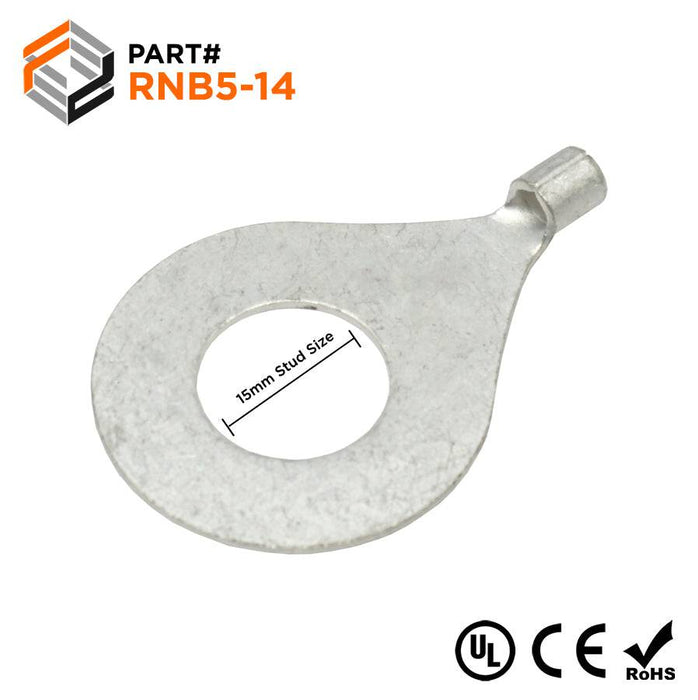

RNB5-14 - Non Insulated Ring Terminal 12-10AWG

$38.20
SKU RNB5-14
Piece Quantity
Ring terminals offer a tight and secure connection in high vibration areas. The brazed seam construction protects the terminal's barrel from splitting when crimped

Wire Range: 12-10 AWG
T: 0.04" (1.0mm)
L: 1.9" (47.2mm)
F: 0.99" (25.2mm)
E: 0.24" (6.0mm)
W: 1.3" (32mm)
D: 0.22" (5.6mm)
D1: 0.13" (3.4mm)
D2: 0.59" (15mm)
Terminal Material: Tin-Plated Copper
Stud Size: 9/16 Stud
Temperature Rating: 150oC - 600 Volts
Max Electrical Rating: 50 AMP
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:
