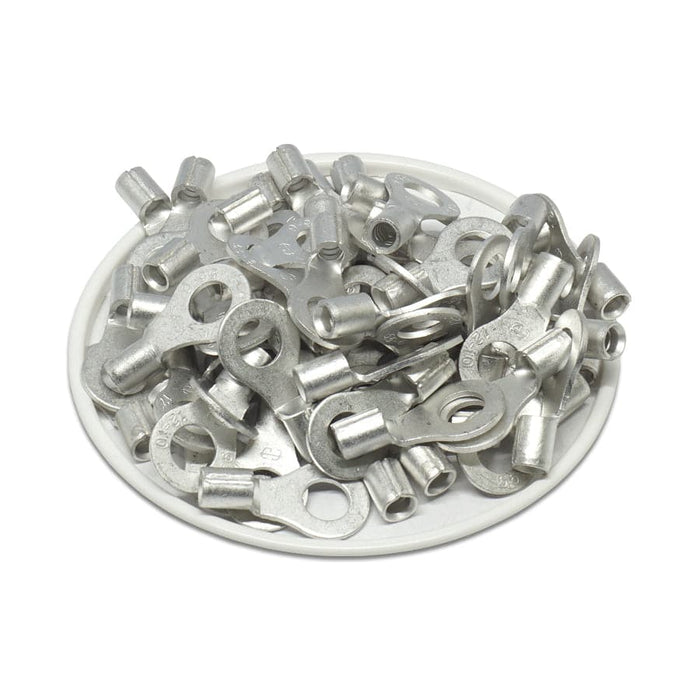

RNB5-6 - Non Insulated Ring Terminal - 12-10AWG
Sold out
Original price
$20.62
-
Original price
$20.62
Original price
$20.62
$20.62
-
$20.62
Current price
$20.62
SKU RNB5-6
Availability:
Out of stock
Ring tongue design offers a tight and secure connection in high vibration areas, the non insulated crimp joint meets industry standards with internal barrel serrations for good wire contact and maximum tensile strength.
Product Drawing:
McMaster-Car: 7113K18
Panduit: P10-14R
Phoenix Contact: 3240085
Tyco AMP: 35772
| Wire Range: | 12-10 AWG |
| T: | 0.04" (1.0mm) |
| L: | 0.89" (22.0mm) |
| F: | 0.41" (10.5mm) |
| E: | 0.24" (6.0mm) |
| W: | 0.47" (12.0mm) |
| D: | 0.22" (5.6mm) |
| D1: | 0.13" (3.4mm) |
| D2: | 0.25" (6.4mm) |
| Terminal Material: | Tin-Plated Copper |

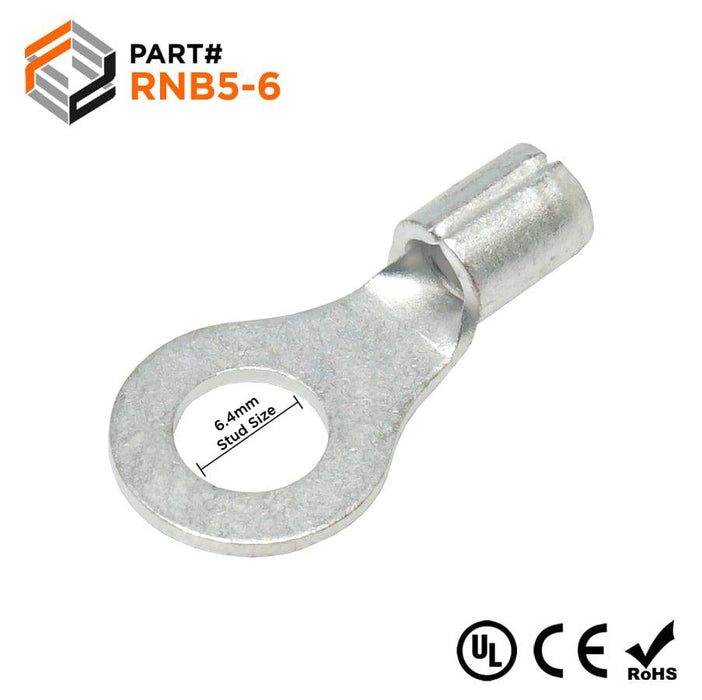

| Stud Size: | 1/4 Stud |
| Temperature Rating: | 150oC - 600 Volts |
| Max Electrical Rating: | 50 AMP |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:McMaster-Car: 7113K18
Panduit: P10-14R
Phoenix Contact: 3240085
Tyco AMP: 35772
