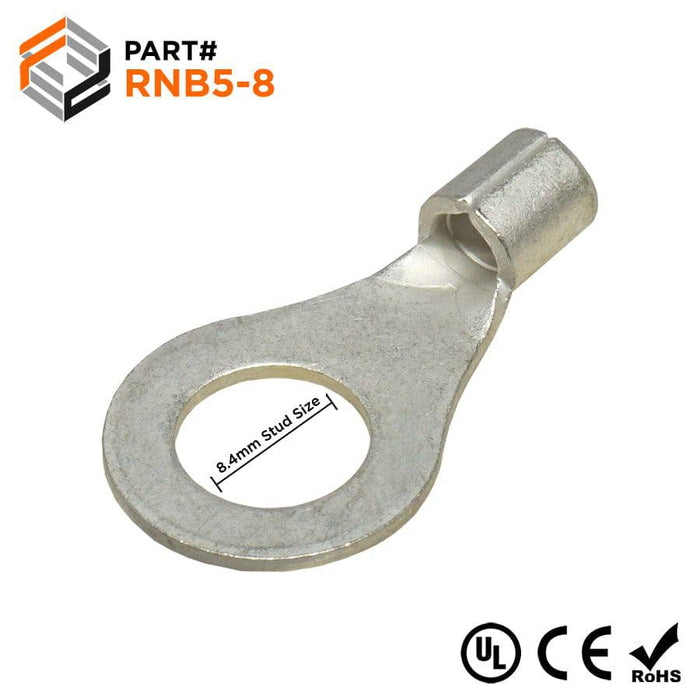

RNB5-8 - Non Insulated Ring Terminal - 12-10AWG

Pack Quantity
Ring tongue design offers a tight and secure connection in high vibration areas, the non insulated crimp joint meets industry standards with internal barrel serrations for good wire contact and maximum tensile strength.

Wire Range: 12-10 AWG
T: 0.04" (1.0mm)
L: 1.10" (27.0mm)
F: 0.52" (13.3mm)
E: 0.24" (6.0mm)
W: 0.59" (15.0mm)
D: 0.22" (5.6mm)
D1: 0.13" (3.4mm)
D2: 0.33" (8.4mm)
Terminal Material: Tin-Plated Copper
Stud Size: 5/16 Stud
Temperature Rating: 150oC - 600 Volts
Max Electrical Rating: 50 AMP
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
3M: M10-516R/SX
Cembre: S6-M8
Elecdirect: R2C56S
Panduit: P10-56R-L
Phoenix Contact: 3240086
Tyco AMP: 33459
