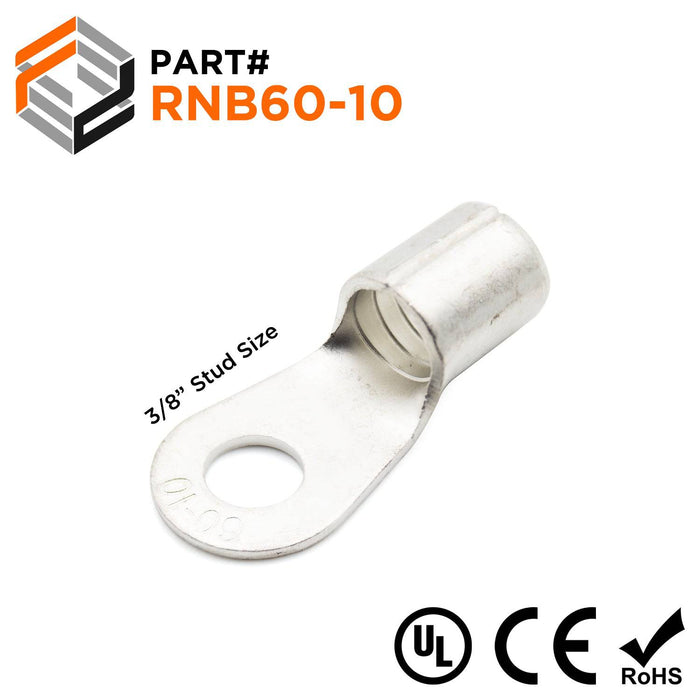

RNB60-10 - Non Insulated Ring Terminal - 1/0 AWG

SKU RNB60-10
Pack Quantity
Ring terminals offer a tight and secure connection in high vibration areas. The brazed seam construction protects the terminal's barrel from splitting when crimped.

Wire Range: 1/0 AWG
T: 0.07" (1.8mm)
L: 1.98" (49.7mm)
F: 0.82" (20.7mm)
E: 0.71" (18mm)
W: 0.87" (22mm)
D: 0.61" (15.4mm)
D1: 0.45" (11.4mm)
D2: 0.41" (10.5mm)
Terminal Material: Tin-Plated Copper
Stud Size: 3/8 Stud
Temperature Rating: 150oC - 600 Volts
Max Electrical Rating: 235 AMP
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:
