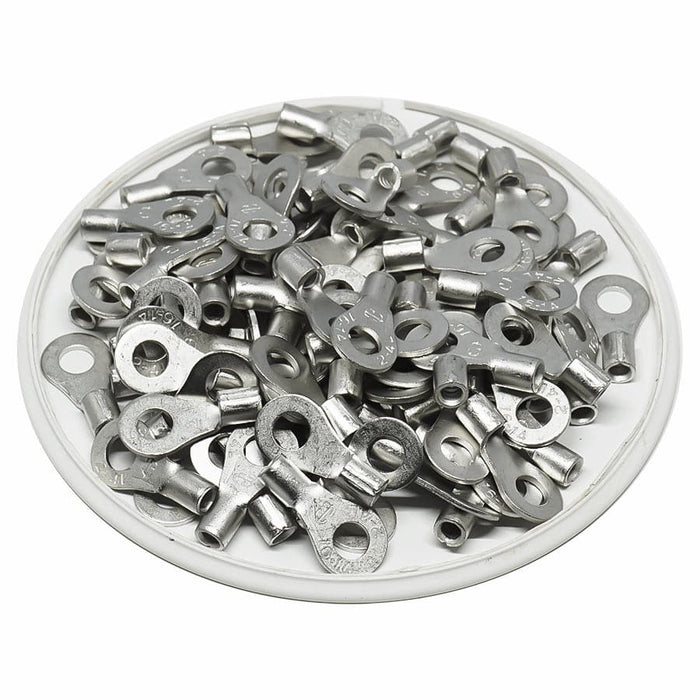

RNBL2-4 - Non Insulated Ring Terminal - 16-14AWG
Original price
$8.52
-
Original price
$8.52
Original price
$8.52
$8.52
-
$8.52
Current price
$8.52
SKU RNBL2-4
Availability:
in stock, ready to be shipped
Ring tongue design offers a tight and secure connection in high vibration areas, the non insulated crimp joint meets industry standards with internal barrel serrations for good wire contact and maximum tensile strength.
Product Drawing:
3M: M14-8R/LK
Elecdirect: R2B8
Phoenix Contact: 3240078
Tyco AMP: 34122
| Wire Range: | 16-14 AWG |
| T: | 0.03" (0.8mm) |
| L: | 0.57" (16.5mm) |
| F: | 0.29" (7.4mm) |
| E: | 0.19" (4.8mm) |
| W: | 0.34" (8.5mm) |
| D: | 0.16" (4.1mm) |
| D1: | 0.09" (2.3mm) |
| D2: | 0.17" (4.3mm) |
| Terminal Material: | Tin-Plated Copper |
| Stud Size: | #8 Stud |
| Temperature Rating: | 150oC - 600 Volts |
| Max Electrical Rating: | 30 AMP |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:3M: M14-8R/LK
Elecdirect: R2B8
Phoenix Contact: 3240078
Tyco AMP: 34122
