RNBM1-37 - Non Insulated Ring Terminal - 22-16AWG
Original price
$5.98
-
Original price
$5.98
Original price
$5.98
$5.98
-
$5.98
Current price
$5.98
SKU RNBM1-37
Availability:
in stock, ready to be shipped

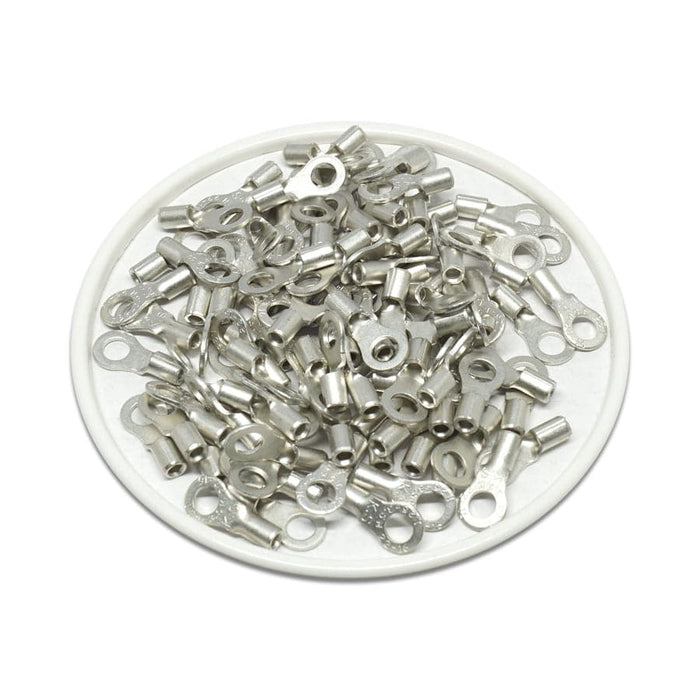

Ring tongue design offers a tight and secure connection in high vibration areas, the non insulated crimp joint meets industry standards with internal barrel serrations for good wire contact and maximum tensile strength.
Product Drawing:
3M: M18-6R/SK
Cembre: S1.5-M3.5/1
Elecdirect: R2A6
Phoenix Contact: 3240071
Tyco AMP: 34107
| Wire Range: | 22-16 AWG |
| T: | 0.03" (0.75mm) |
| L: | 0.57" (14.4mm) |
| F: | 0.25" (6.3mm) |
| E: | 0.19" (4.8mm) |
| W: | 0.26" (6.6mm) |
| D: | 0.13" (3.4mm) |
| D1: | 0.07" (1.7mm) |
| D2: | 0.15" (3.7mm) |
| Terminal Material: | Tin-Plated Copper |
| Stud Size: | #6 Stud |
| Temperature Rating: | 150oC - 600 Volts |
| Max Electrical Rating: | 18 AMP |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:3M: M18-6R/SK
Cembre: S1.5-M3.5/1
Elecdirect: R2A6
Phoenix Contact: 3240071
Tyco AMP: 34107
