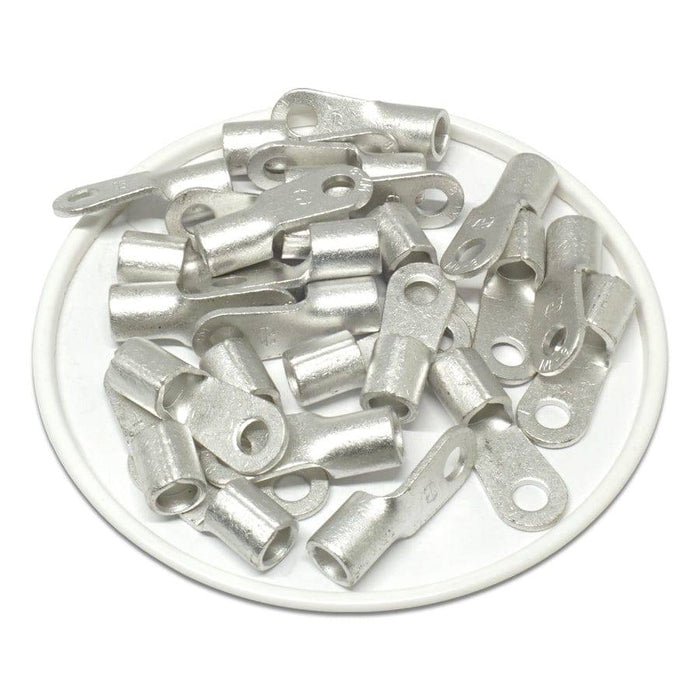

RNBM8-4 - Non Insulated Ring Terminals - 8 AWG - #8 Stud
Original price
$6.32
-
Original price
$6.32
Original price
$6.32
$6.32
-
$6.32
Current price
$6.32
SKU RNBM8-4
Availability:
in stock, ready to be shipped
Ring terminals offer a tight and secure connection in high vibration areas. The brazed seam construction protects the terminal's barrel from splitting when crimped.
Dimensions & Features:
Product Drawing:
None
Click to view product spec sheet:
Dimensions & Features:
| Wire Size: | 8 AWG |
| Stud Size: | #8 Stud |
| T: | 1.2mm (0.05") |
| L: | 23.5mm (0.93") |
| F: | 10.8mm (0.43") |
| E: | 8.6mm (0.34") |
| W: | 8.8mm (0.35") |
| D: | 7.2mm (0.28") |
| D1: | 4.5mm (0.18") |
| D2: | 4.3mm (0.17") |
| Material: | Tin Plated Copper |
| Max Electrical Rating: | 150°C - 600 Volts |
| Max Electrical Current: | 95A |
| UL Approved: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
Documents
Click to view product spec sheet:
