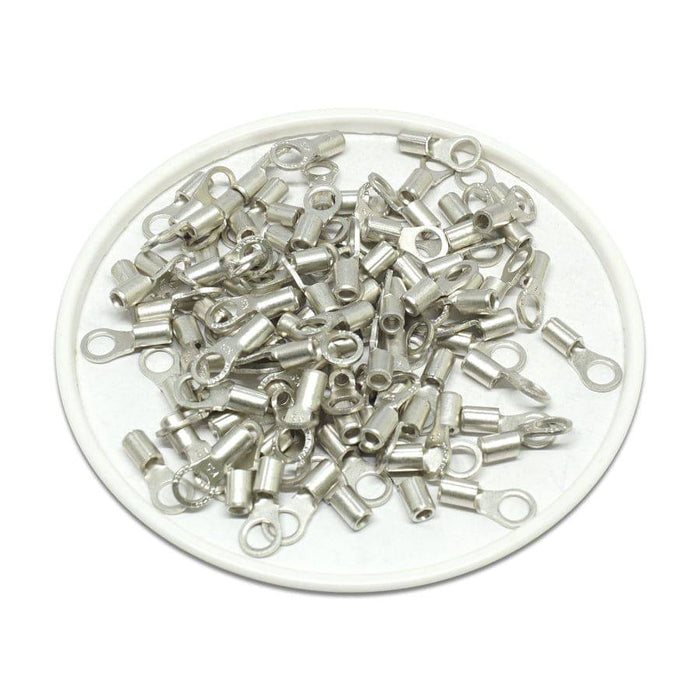

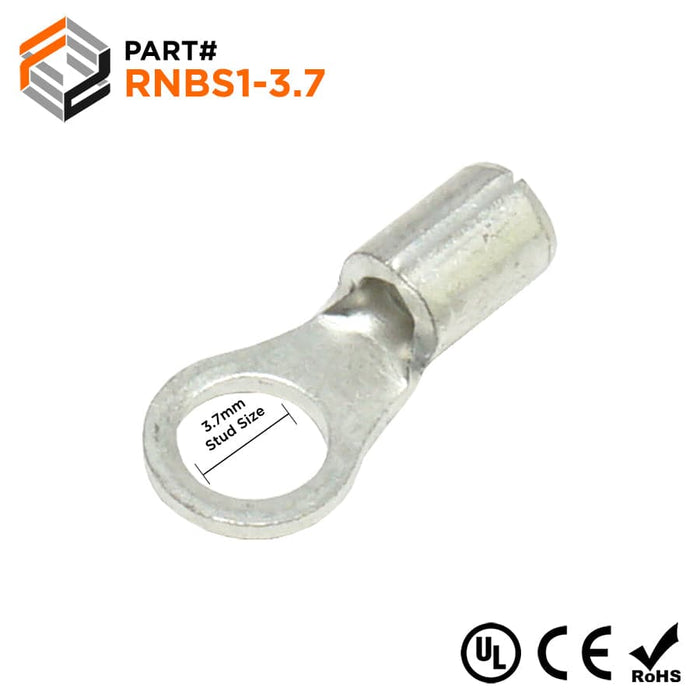

RNBS1-3.7 - Non Insulated Ring Terminal 22-16AWG

$5.43
SKU RNBS1-37
Piece Quantity

PRODUCT DESCRIPTION

Ring tongue design offers a tight and secure connection in high vibration areas, Non-insulated sleeve is securely fastened to metal insulation grip sleeve, providing protection to crimp joint. Color coded according to industry standards Internal barrel serrations offer good wire contact and maximum tensile strength.

DIMENSIONS AND FEATURES
T: 0.75mm (.03") Wire Range: 22-16 AWG
L: 12.5mm (0.49") Stud Size: #6
F: 5mm (0.19") Temperature Rating: 150oC
E: 4.8mm (0.19") Voltage Rating: 600 Volts
W: 5.5mm (0.22") Max Electrical Rating: 18AMP
D: 3.4mm (0.13") Material: Tin-Plated Copper
D1: 1.7mm (.07") UL Recognized: Yes
D2 3.7mm (0.15") CE Certified: Yes
RoHS Compliant: Yes

TECHNICAL DRAWING

Cross Reference Parts:

Cembre: S1.5-M3.5
McMaster-Carr: 7113K11
Panduit: P18-6R-C
Tyco AMP: 34105
